SELECT A DIAGRAM

Blower & Motor Assembly


Cabinet & Top Panel


Control Panel


Drum


Front Panel & Door


Gas Valve & Burner Assembly


Optional Accessories


Trap Duct Assembly

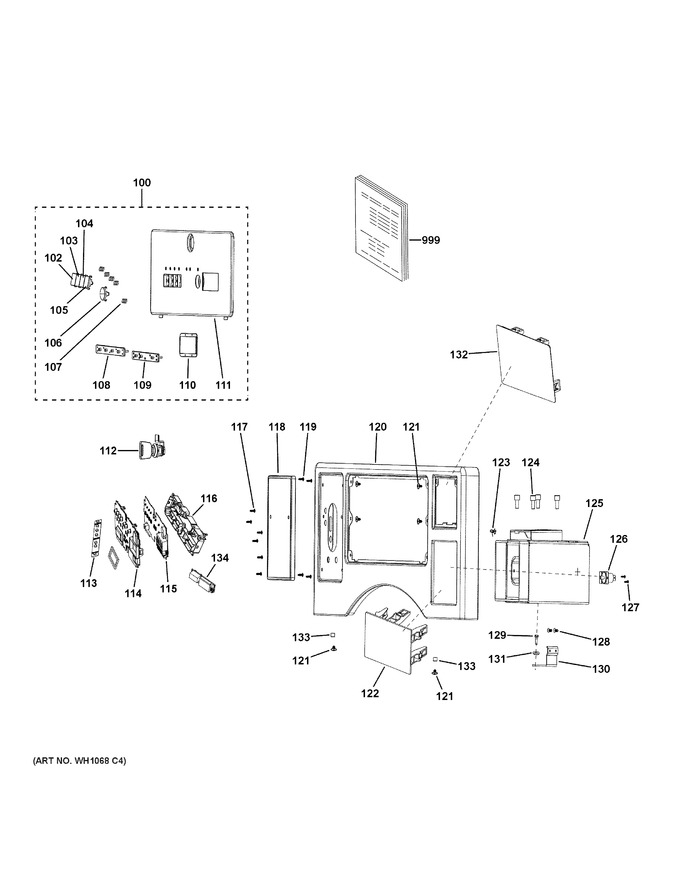

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
100	WE22X33549		Control Panel Assembly		Appelez-nous	-
102	WE01X33579		High Temp Button		Appelez-nous	-
103	WE01X33567		Mid Temp Button		Appelez-nous	-
104	WE01X33581		Low Temp Button		Appelez-nous	-
105	WE01X33580		Cool Temp Button		Appelez-nous	-
106	WE01X33585		Start Button		Appelez-nous	-
107	WH02X33348		Button Spring		Appelez-nous	-
108	WE01X33571		Light Guide		Appelez-nous	-
109	WE01X33534		Light Guide		Appelez-nous	-
110	WE13X33584		Control Panel Display Cover		Appelez-nous	-
111	WE22X33831		Control Panel Dryer		Appelez-nous	-
112	WE01X33503		Control Panel Lock		Appelez-nous	-
113	WH01X33418		Silicone Key Mat		Appelez-nous	-
114	WH01X33391		User Interface Board Cover		Appelez-nous	-
115	WE22X37977		User Interface Board Fl Comm Gas		Appelez-nous	-
116	WH01X33387		User Interface Board Housing		Appelez-nous	-
117	WH02X26155		Screw St4*12		Appelez-nous	-
118	WE13X33582		Control Panel Plate Cover		Appelez-nous	-
119	WH02X27685		Screw St4*10-b		Appelez-nous	-
120	WE13X33535		Control Panel Frame		Appelez-nous	-
121	WH02X26267		Screw St3.5*12		Appelez-nous	-
122	WE13X33501		Coin Box Cover		Appelez-nous	-
123	WH02X29626		Ground Harness Clamp		Appelez-nous	-
124	WE02X33541		Screw M8*20		Appelez-nous	-
125	WE13X33522		Coin Box Housing		Appelez-nous	-
126	WH01X33456		Service Switch		Appelez-nous	-
127	WH02X26927		Screw St4*7		Appelez-nous	-
128	WE02X33506		Screw M4*16		Appelez-nous	-
129	WH02X26924		Screw M5*12		Appelez-nous	-
130	WE13X33578		Coin Box Housing Bracket		Appelez-nous	-
131	WE02X26368		Outer Flat Washer		Appelez-nous	-
132	WE13X33573		Control Panel Hole Cover		Appelez-nous	-
133	WE02X28703		Locator Pin		Appelez-nous	-
134	WH22X36263		Wifi Board		Appelez-nous	-
999	49-3000279		Pm Owners And Install		Appelez-nous	-
999	31-3000280		Pm Mini Manual And Wiring		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
