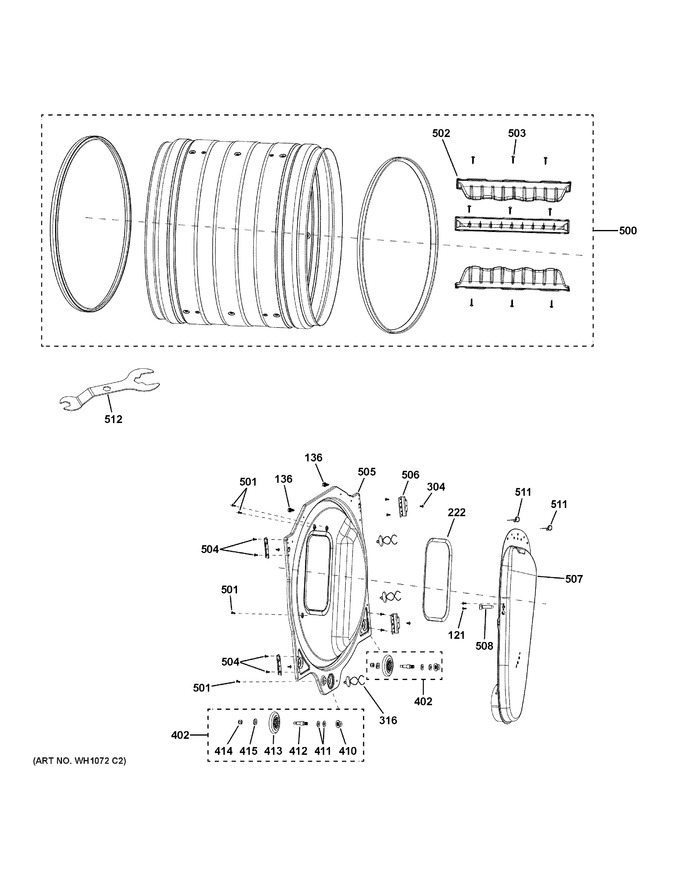

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
121	WH02X26267		Screw St3.5*12		Appelez-nous	-
136	WR01X27788		Screw M3.5*9.5		Appelez-nous	-
222	WE09X27688		Gasket		Appelez-nous	-
304	WH02X26236		Screw M4*10		Appelez-nous	-
316	WE02X28699		Fixed-line Clip		Appelez-nous	-
402	WE01X33551		Roller Wheel Assembly		Appelez-nous	-
410	WE02X28700		Nut M10		Appelez-nous	-
411	WE02X28702		Nut M10 Gasket		Appelez-nous	-
412	WE01X28721		Drum Wheel Support Shaft		Appelez-nous	-
413	WE21X26838		Drum Wheel		Appelez-nous	-
414	WE02X26839		Nut		Appelez-nous	-
415	WH02X27226		Washer		Appelez-nous	-
500	WE21X33777		Drum & Baffle Assembly		Appelez-nous	-
501	WE02X33500		Screw St4*12		Appelez-nous	-
502	WE01X35284		Drum Baffle		Appelez-nous	-
503	WE02X26576		Screw 5*25		Appelez-nous	-
504	WH01X27834		Screw St4*12		Appelez-nous	-
505	WE13X33555		Rear Drum Support		Appelez-nous	-
506	WE13X33556		Rear Drum Support Bracket		Appelez-nous	-
507	WE16X37697		Supply Duct Fl Comm Dryer Gas		Appelez-nous	-
508	WE04X33507		Inlet Thermistor		Appelez-nous	-
511	WH02X26866		Wire Tie		Appelez-nous	-
512	WE01X36380		Wrench Leveling Legs/feet		Appelez-nous	-
