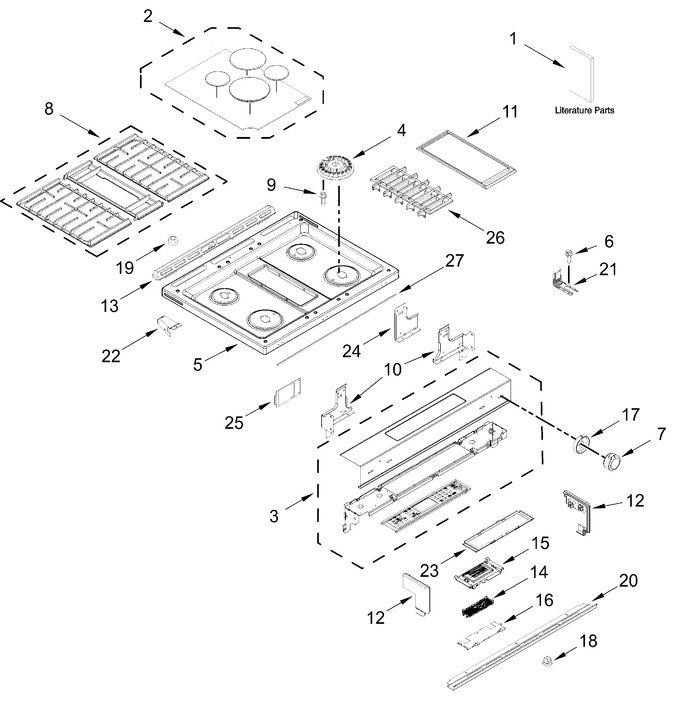

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | ARI4741983F61CAC445F12C0C1FD1B613C1 | Literature Parts |
|
- | |||||
| 2 | W11834859 | Burner Cap Kit (black) (Replaces: W11352138) |
|
- | |||||
| 3 | W11838614 | Console Assembly, Upper (stainless) (Replaces: W10901117) |
|
Immediately | $ 578.81 | ||||
| 4 | W11435630 | Spreader, Flame (Replaces: W11352018) |
|
Immediately | $ 82.12 | ||||
| 5 | W11117943 | Cooktop-gas (stainless) |
|
$ 436.80 | |||||
| 6 | 7101P48560 | Screw, Anti-tip Kit |
|
- | |||||
| 7 | W10872668 | Single, Knob (stainless) (Replaces: W10786065) |
|
Immediately | $ 131.50 | ||||
| 8 | W11451474 | Grate (black) (Replaces: W11382964) |
|
$ 378.97 | |||||
| 9 | W11241230 | Screw (Replaces: W10673618) |
|
Immediately | $ 14.73 | ||||
| 10 | W10289170 | Bracket,support (left) (Replaces: W11563529) |
|
$ 30.05 | |||||
| 11 | W10432544 | Griddle |
|
Immediately | $ 66.43 | ||||
| 12 | W10555937 | Endcap (stainless Left) |
|
$ 67.95 | |||||
| 13 | W11170796 | Trim, Vent (stainless) (Replaces: W10636529) |
|
Immediately | $ 145.75 | ||||
| 14 | W11100513 | Control Mrc2 (Replaces: W10759299) |
|
Immediately | $ 527.64 | ||||
| 15 | W11105615 | Display, Assembly (Replaces: W10759325) |
|
Immediately | $ 527.64 | ||||
| 16 | W10558372 | Bracket, Control |
|
$ 25.10 | |||||
| 17 | W10814133 | Bezel (stainless) (Replaces: W10785119) |
|
Immediately | $ 113.38 | ||||
| 18 | W11025100 | Grommet (Replaces: W10645947) |
|
Immediately | $ 13.16 | ||||
| 19 | W11690600 | Bumper (Replaces: W10854253) |
|
Immediately | $ 14.91 | ||||
| 20 | W10743276 | Panel, Lower Console (stainless) |
|
$ 86.68 | |||||
| 21 | W11502257 | Bracket, Anti-tip (Replaces: W11379947) |
|
Immediately | $ 23.03 | ||||
| 22 | W10162253 | Brace, Corner (left) |
|
$ 74.13 | |||||
| 23 | W10555923 | Bracket, User Interface |
|
$ 107.43 | |||||
| 24 | W10598048 | Bracket, Console (center) |
|
$ 25.73 | |||||
| 25 | W11355689 | Keypad Shield |
|
$ 22.64 | |||||
| 26 | W11451445 | Grill, Air (black) (Replaces: W11383491) |
|
- | |||||
| 27 | W11620671 | Gasket, Console And Cooktop (Replaces: W11512127) |
|
$ 25.12 | |||||
| W11563527 | Bracket, Support (right) |
|
- | ||||||
| W11123868 | Reducer, Venturi (choke) (Replaces: W10340851) |
|
$ 103.62 | ||||||
| W11435573 | Quick Start Guide |
|
- | ||||||
| W11643128 | Downdraft Template (Replaces: W10817089) |
|
$ 14.41 | ||||||
| W10162252 | Brace, Corner (right) |
|
$ 78.59 | ||||||
| ARI331AC8E6A0B32951011383800D6FC3B6 | (left Front And Right Front) |
|
- | ||||||
| W11435659 | Spreader, Flame (Replaces: W11352020) |
|
$ 84.85 | ||||||
| ARI283693F3486669333C7F1EE938CD8A5B | (right Rear) |
|
- | ||||||
| W11435657 | Spreader, Flame (Replaces: W11352021) |
|
$ 84.43 | ||||||
| ARIF7E7CB4EEF4E7DE47369C6A29EE1E0F9 | (left Rear) |
|
- | ||||||
| W11198274 | Harness, Down Draft Fan Jumper |
|
$ 117.73 | ||||||
| W11025616 | Harness, Keypad (Replaces: W10575120) |
|
Immediately | $ 75.29 | |||||
| W11176109 | Harness, Display (Replaces: W10598169) |
|
Immediately | $ 224.96 | |||||
| W11451578 | Harness, Main |
|
- | ||||||
| ARI7C4B781E09F4C135E8A56A812FBF5A4D | Following Parts Not Illustrated |
|
- | ||||||
| W10555940 | Endcap (stainless Right) |
|
$ 67.95 | ||||||
| W11509601 | Use And Care Guide |
|
- | ||||||
| W11565454 | Tech Sheet |
|
- |
