Blower Parts
Chassis Parts
Cooktop Parts
Door Parts
Drawer Parts
Manifold Parts
Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:

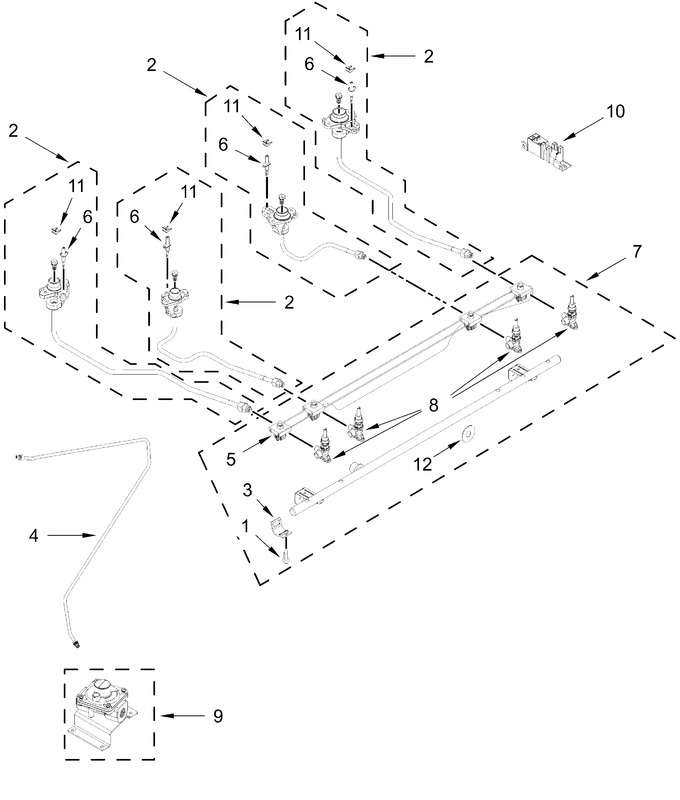

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10295997 | Screw, Valve |
|
$ 7.32 | |||||
| 2 | W11451472 | Holder Assembly, Gas Orifice (17k) (Replaces: W11186514) |
|
- | |||||
| 3 | W10949105 | Bracket, Saddle Valve |
|
$ 22.75 | |||||
| 4 | W10552945 | Tube, Supply |
|
$ 94.24 | |||||
| 5 | W10669619 | Harness, Switch Spark |
|
$ 177.10 | |||||
| 6 | W11661929 | Electrode, Burner (Replaces: W10669526) |
|
Immediately | $ 50.21 | ||||
| 7 | W11416335 | Manifold Assembly |
|
- | |||||
| 8 | W11241561 | Valve, Gas (Replaces: W10566062) |
|
Immediately | $ 195.14 | ||||
| 9 | W10661850 | Regulator And Bracket, Assembly |
|
$ 131.25 | |||||
| 10 | W11693498 | Module, Spark (Replaces: W11349967) |
|
Immediately | $ 105.71 | ||||
| 11 | W11684564 | Electrode, Spring (Replaces: W10827923) |
|
Immediately | $ 12.65 | ||||
| 12 | W10140571 | Seal, Switch Shaft |
|
$ 7.70 | |||||
| WPW10182767 | Tie, Manifold Wire (Replaces: W10182767) |
|
$ 7.30 | ||||||
| W11126047 | Kit, Lp Conversion (Replaces: W10566083) |
|
Immediately | $ 126.50 | |||||
| ARIA12C7E5D311C54B1AACBC1820DF34957 | (right Front) |
|
- | ||||||
| W11186526 | Holder Assembly, Gas Orifice (15k) |
|
Immediately | $ 99.68 | |||||
| ARIF7E7CB4EEF4E7DE47369C6A29EE1E0F9 | (left Rear) |
|
- | ||||||
| W11186509 | Holder Assembly, Gas Orifice (5k) |
|
Immediately | $ 99.65 | |||||
| ARI76BF577D359F4F7B6AC1C45BB9FB0006 | (left Front) |
|
- | ||||||
| W11233561 | Valve, Gas (Replaces: W10566057) |
|
Immediately | $ 264.72 | |||||
| ARI7C4B781E09F4C135E8A56A812FBF5A4D | Following Parts Not Illustrated |
|
- | ||||||
| W11451473 | Valve, Gas (Replaces: W11416332) |
|
$ 122.56 | ||||||
| ARI331AC8E6A0B32951011383800D6FC3B6 | (left Front And Right Front) |
|
- | ||||||
| W11661897 | Electrode, Burner (Replaces: W10669523) |
|
$ 48.36 | ||||||
| W11643126 | Electrode, Burner (Replaces: W10669524) |
|
Immediately | $ 53.21 | |||||
| W11666003 | Electrode, Burner (Replaces: W10669525) |
|
$ 48.41 | ||||||
| ARI283693F3486669333C7F1EE938CD8A5B | (right Rear) |
|
- | ||||||
| W11186522 | Holder Assembly, Gas Orifice (9.2k) |
|
Immediately | $ 99.30 |
