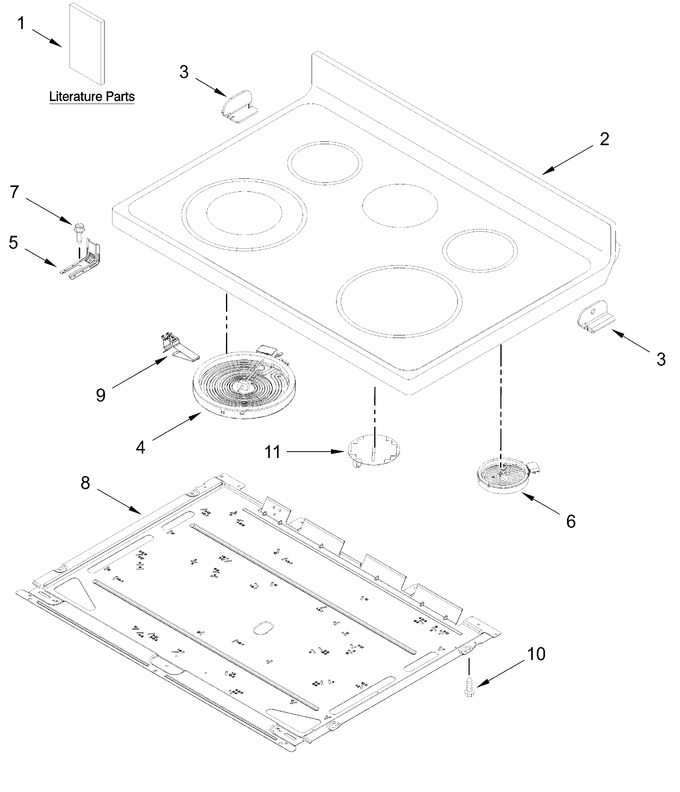

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	ARI4741983F61CAC445F12C0C1FD1B613C1		Literature Parts		Appelez-nous	-
2	W11548507		Cooktop (black)   (Replaces: W11527499)				$ 607.66
3	W10607641		Bracket, Cooktop (left)				$ 33.52
4	W11517959		Element (3000w Dual)   (Replaces: W11282542)			Immediately	$ 134.44
5	W11839019		Bracket, Anti-tip   (Replaces: W11379945)			Immediately	$ 28.54
6	W11171119		Element (1200w)   (Replaces: 8273994)			Immediately	$ 182.23
7	7101P48560		Screw, Anti-tip Kit		Appelez-nous	-
8	W11728329		Pan, Radiant Element   (Replaces: W11640572)			Immediately	$ 143.49
9	W11663556		Spring, Element   (Replaces: W11600012)			Immediately	$ 14.84
10	WP3196175		Screw   (Replaces: 3196165)			Immediately	$ 7.55
11	W11735483		Element, Warm Zone   (Replaces: W11684444)		Appelez-nous	-
	ARI68146C2FADA8E1AE3122F181AC9275E2		(left Front, Right Front)		Appelez-nous	-
	W11838447		Harness, Hidden Bake   (Replaces: W11172528)				$ 27.02
	W11745563		Quick Start Guide		Appelez-nous	-
	W11746526		Tech Sheet		Appelez-nous	-
	W10607642		Bracket, Cooktop (right)		Appelez-nous	-
	ARIAF8B2CF0387D82C1B76CFE2500CD62C6		(left Rear And Right Rear)		Appelez-nous	-
	W11598759		Harness, Warm Zone		Appelez-nous	-
	W11825100		Harness, Cooktop (right)   (Replaces: W11134845)				$ 86.33
	W11675846		Harness, Cooktop (left)   (Replaces: W11134603)			Immediately	$ 39.67
	W11750758		Harness, Main   (Replaces: W11648551)		Appelez-nous	-
	ARI7C4B781E09F4C135E8A56A812FBF5A4D		Following Parts Not Illustrated		Appelez-nous	-
	ARI7A67B14AEA62F6D2A04BCF7D52CA12EE		(center)		Appelez-nous	-
	WPW10281322		Kit, Bare Wire Adapter Block   (Replaces: W10281322)				$ 8.87
	W11745561		Owners Manual		Appelez-nous	-
