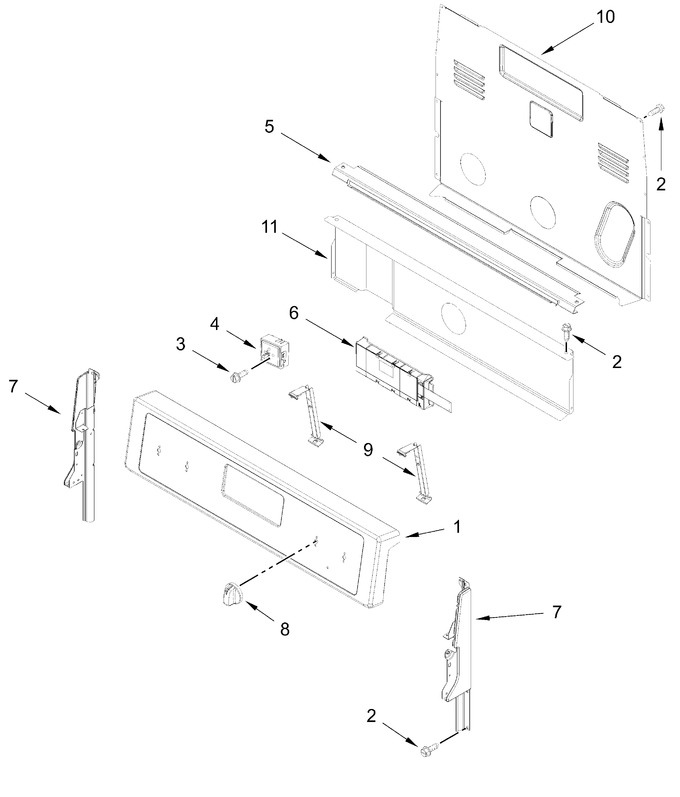

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11548761 | Console, Panel (stainless) (Replaces: W11520765) |
|
Immediately | $ 288.13 | ||||
| 2 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.72 | ||||
| 3 | WP3400882 | Screw (Replaces: 3400882) |
|
Immediately | $ 7.55 | ||||
| 4 | WPW10434452 | Switch, Infinite (dual) (Replaces: W10434452) |
|
Immediately | $ 140.84 | ||||
| 5 | W10525121 | Bracket, Console Mounting |
|
$ 98.85 | |||||
| 6 | W11548762 | Control, Board (black) (Replaces: W11527162) |
|
Immediately | $ 254.94 | ||||
| 7 | W11219664 | Endcap (black Left) (Replaces: W11130372) |
|
$ 153.83 | |||||
| 8 | W11765140 | Knob (stainless) (Replaces: W11742978) |
|
- | |||||
| 9 | W11230932 | Bracket, Control (Replaces: W10695491) |
|
Immediately | $ 84.81 | ||||
| 10 | WP8272473 | Cover, Upper Rear (Replaces: 8272473) |
|
$ 219.04 | |||||
| 11 | W10134247 | Shield, Heat |
|
Immediately | $ 358.82 | ||||
| ARIAF8B2CF0387D82C1B76CFE2500CD62C6 | (left Rear And Right Rear) |
|
- | ||||||
| ARI68146C2FADA8E1AE3122F181AC9275E2 | (left Front, Right Front) |
|
- | ||||||
| W11219665 | Endcap (black Right) (Replaces: W11130379) |
|
$ 45.17 | ||||||
| 5500-287 | Switch, Infinite (Replaces: 3148951) |
|
Immediately | $ 52.39 |
