SELECT A DIAGRAM

Chassis Parts


Control Panel Parts


Cooktop Parts


Door Parts


Drawer Parts


Manifold Parts


Optional Parts (not Included)

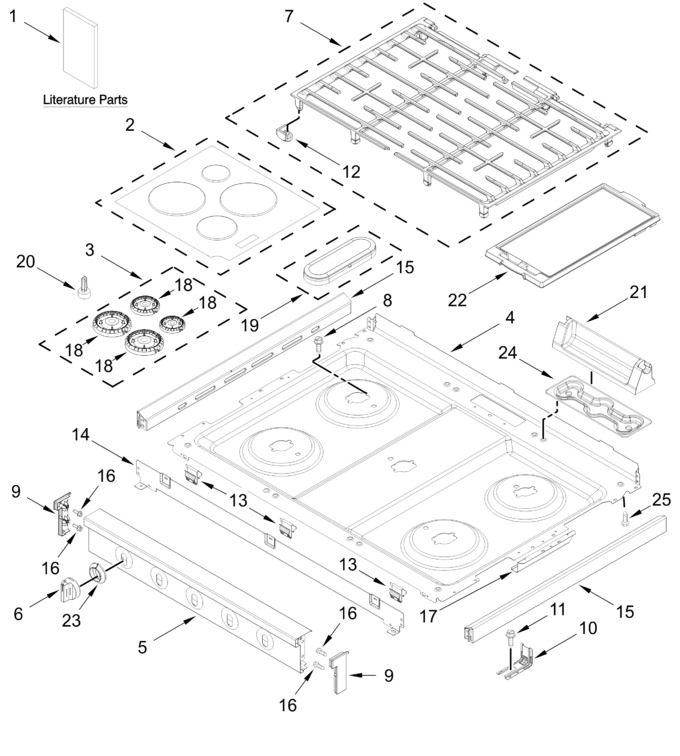

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	ARI4741983F61CAC445F12C0C1FD1B613C1		Literature Parts		Appelez-nous	-
2	W11605759		Burner Cap Kit (black)   (Replaces: W11498499)			Immediately	$ 75.35
3	W11671543		Surface, Burner Kit   (Replaces: W11600788)				$ 129.17
4	W11730418		Cooktop (black)   (Replaces: W11279795)				$ 374.35
5	W11730316		Panel, Manifold (black)   (Replaces: W11393099)		Appelez-nous	-
6	W11730481		Knob (black)   (Replaces: W11632048)		Appelez-nous	-
7	W11728633		Grate, Kit (black)   (Replaces: W11622335)				$ 347.75
8	W11241230		Screw   (Replaces: W10673618)			Immediately	$ 14.73
9	W11730317		Panel, Manifold End Cap (black, Left)   (Replaces: W11361195)		Appelez-nous	-
10	W11839019		Bracket, Anti-tip   (Replaces: W11379945)			Immediately	$ 28.54
11	7101P48560		Screw, Anti-tip Kit		Appelez-nous	-
12	W11729100		Grate, Bumper   (Replaces: W11672010)				$ 13.71
13	W11728827		Spring, Clip   (Replaces: W11637551)		Appelez-nous	-
14	W11750421		Cooktop, Front Bracket   (Replaces: W11736687)		Appelez-nous	-
15	W11729931		Cooktop, Frame Bracket (black)   (Replaces: W11367962)				$ 171.56
16	W11245710		Screw   (Replaces: 9780274)			Immediately	$ 14.75
17	W11728390		Bracket, Spark Module   (Replaces: W11366598)		Appelez-nous	-
18	W11531096		Flame Spreader   (Replaces: W11352193)				$ 81.92
19	W11729926		Oval Spreader Flame, Assembly   (Replaces: W11635774)				$ 180.88
20	8016P02260		Glide, Main Top		Appelez-nous	-
21	W11728632		Grate, Hinge (black, Rear)   (Replaces: W11621636)				$ 112.94
22	W11728634		Griddle, Cooktop   (Replaces: W11640437)				$ 106.55
23	W11730488		Bezel (black)   (Replaces: W11632250)		Appelez-nous	-
24	W11729925		Hinge, Spacer   (Replaces: W11623712)			Immediately	$ 16.94
25	W10530626		Screw				$ 16.76
	16515		Clip, Harness   (Replaces: 313438)				$ 20.53
	W11642081		Owner's Manual		Appelez-nous	-
	W11531097		Flame Spreader   (Replaces: W11352195)				$ 81.15
	3196896		Clip, Wire		Appelez-nous	-
	3400964		Clip, Wire   (Replaces: 3196520)				$ 89.00
	ARI68146C2FADA8E1AE3122F181AC9275E2		(left Front, Right Front)		Appelez-nous	-
	ARI283693F3486669333C7F1EE938CD8A5B		(right Rear)		Appelez-nous	-
	ARIF7E7CB4EEF4E7DE47369C6A29EE1E0F9		(left Rear)		Appelez-nous	-
	ARI7C4B781E09F4C135E8A56A812FBF5A4D		Following Parts Not Illustrated		Appelez-nous	-
	W11641568		Quick Start Guide		Appelez-nous	-
	W11639170		Tech Sheet		Appelez-nous	-
	W11730272		Harness, Bake   (Replaces: W11454086)			Immediately	$ 59.10
	W11730319		Panel, Manifold End Cap (black, Right)   (Replaces: W11361200)			Immediately	$ 80.58
	W11730263		Harness, Main   (Replaces: W11334462)		Appelez-nous	-
	W11730264		Harness, Cooktop   (Replaces: W11334489)				$ 180.62
	ARI7A67B14AEA62F6D2A04BCF7D52CA12EE		(center)		Appelez-nous	-
	W11531098		Flame Spreader   (Replaces: W11352197)				$ 80.72

    View Diagram in Separate Window       Print Part List
