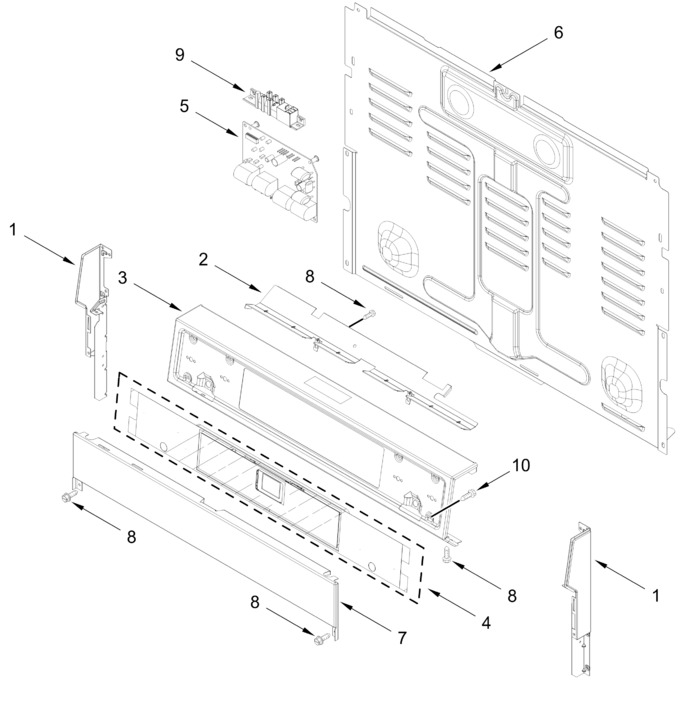

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11728322 | Console, Endcap (black, Left) (Replaces: W11625423) |
|
- | |||||
| 2 | W11747326 | Shield, Heat (Replaces: W11736649) |
|
- | |||||
| 3 | W11729940 | Panel, Control (black) (Replaces: W11385176) |
|
- | |||||
| 4 | W11839349 | User Interface (Replaces: W11400084) |
|
- | |||||
| 5 | W10898291 | Module, Spark Dsi (Replaces: W10818365) |
|
Immediately | $ 365.64 | ||||
| 6 | W11727014 | Cover, Upper Rear (Replaces: W11393669) |
|
- | |||||
| 7 | W11730081 | Panel, Lower (black) (Replaces: W11625443) |
|
- | |||||
| 8 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.95 | ||||
| 9 | W11703692 | Spark Module (Replaces: W11350452) |
|
Immediately | $ 96.65 | ||||
| 10 | W10491985 | Screw (Replaces: 3196160) |
|
Immediately | $ 7.55 | ||||
| W11728320 | Console, Endcap (black, Right) (Replaces: W11625420) |
|
$ 117.71 |
