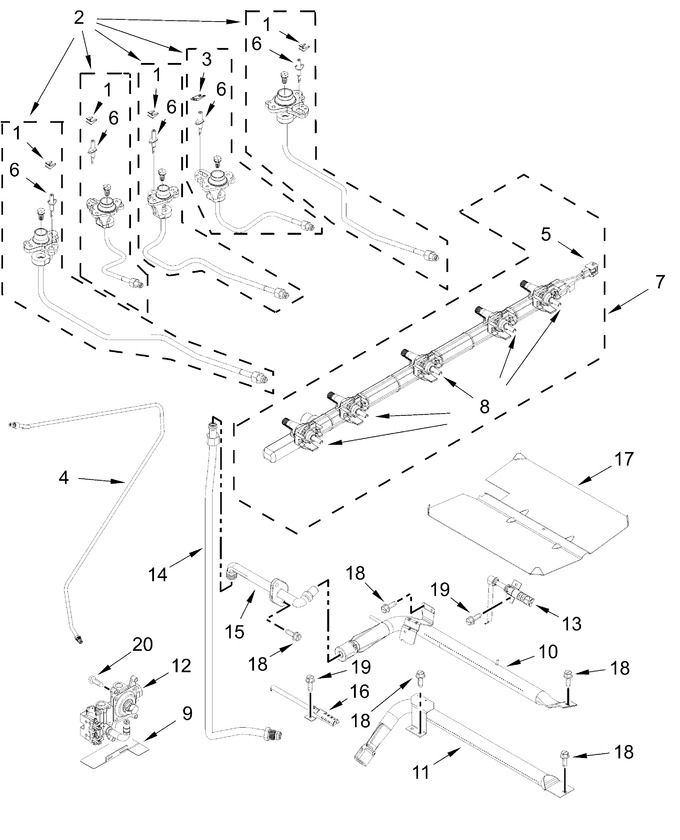

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
Chassis Parts
Cooktop Parts
Door Parts
Drawer Parts
Manifold Parts
Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11684564 | Electrode, Spring (Replaces: W10827923) |
|
Immediately | $ 12.65 | ||||
| 2 | W11122530 | Assembly, Orifice (Replaces: W10867777) |
|
$ 100.13 | |||||
| 3 | W11084050 | Clip, Electrode |
|
$ 22.03 | |||||
| 4 | W11107282 | Tube, Supply |
|
$ 157.34 | |||||
| 5 | W10885903 | Harness, Spark Switch |
|
$ 190.30 | |||||
| 6 | W11661929 | Electrode, Burner (Replaces: W10669526) |
|
Immediately | $ 50.21 | ||||
| 7 | W11504626 | Assembly, Manifold |
|
$ 329.44 | |||||
| 8 | W11550543 | Valve, Gas (Replaces: W11259513) |
|
$ 83.85 | |||||
| 9 | W10224921 | Bracket, Aegis |
|
- | |||||
| 10 | W11676566 | Burner, Broiler (Replaces: W10439242) |
|
$ 94.98 | |||||
| 11 | W10764654 | Burner, Bake (Replaces: W10680035) |
|
Immediately | $ 91.65 | ||||
| 12 | W10861656 | Valve, Regulator (Replaces: W10554066) |
|
Immediately | $ 310.11 | ||||
| 13 | WPW10324262 | Igniter, Bake (Replaces: W10324262) |
|
Immediately | $ 103.98 | ||||
| 14 | W10306050 | Tube, Broil Supply (broiler Fitting To Valve) |
|
$ 189.82 | |||||
| 15 | W10583216 | Fitting, Broil Burner |
|
$ 95.85 | |||||
| 16 | WPW10333842 | Electrode, Broil (Replaces: W10333842) |
|
Immediately | $ 85.81 | ||||
| 17 | 3601P33645 | Baffle, Broil Burner |
|
- | |||||
| 18 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.72 | ||||
| 19 | W11684507 | Screw (Replaces: 3196385) |
|
$ 14.27 | |||||
| 20 | WP3400016 | Screw (Replaces: 3400016) |
|
$ 8.39 | |||||
| W11661897 | Electrode, Burner (Replaces: W10669523) |
|
$ 48.36 | ||||||
| ARI76BF577D359F4F7B6AC1C45BB9FB0006 | (left Front) |
|
- | ||||||
| ARI130620F5738F97FA53E648D69A4CE80B | (left Front, Left Rear) |
|
- | ||||||
| W11643126 | Electrode, Burner (Replaces: W10669524) |
|
Immediately | $ 38.01 | |||||
| ARIE2F766571ECE19AAAC256E04B35496EC | (left Front, Right Front, Center) |
|
- | ||||||
| W11550546 | Valve, Gas (Replaces: W11259404) |
|
$ 85.85 | ||||||
| W11550545 | Valve, Gas (Replaces: W11259514) |
|
$ 82.95 | ||||||
| W11084034 | Electrode, Burner |
|
$ 66.18 | ||||||
| W11122534 | Assembly, Orifice (Replaces: W10867779) |
|
$ 96.75 | ||||||
| ARIF7E7CB4EEF4E7DE47369C6A29EE1E0F9 | (left Rear) |
|
- | ||||||
| W11672515 | Assembly, Orifice (Replaces: W10867780) |
|
$ 237.53 | ||||||
| ARIA12C7E5D311C54B1AACBC1820DF34957 | (right Front) |
|
- | ||||||
| W11122547 | Assembly, Orifice (Replaces: W10867778) |
|
Immediately | $ 100.13 | |||||
| ARI283693F3486669333C7F1EE938CD8A5B | (right Rear) |
|
- | ||||||
| W11548769 | Assembly, Orifice (Replaces: W11498076) |
|
$ 125.56 | ||||||
| ARI7A67B14AEA62F6D2A04BCF7D52CA12EE | (center) |
|
- |
