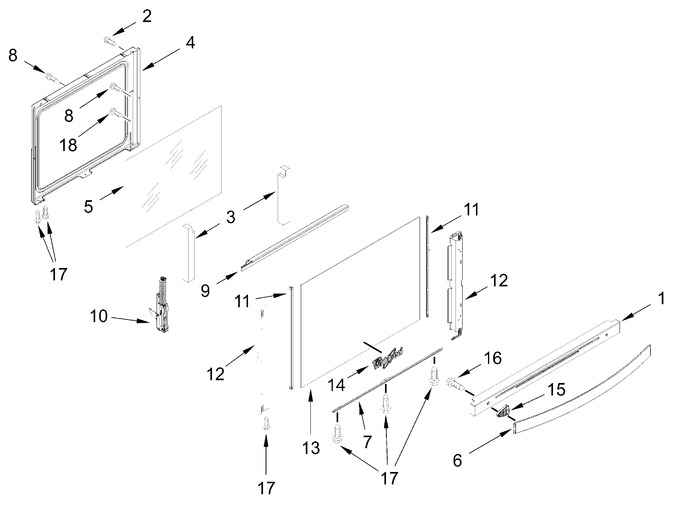

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11106938		Trim, Vent (black)   (Replaces: W10880611)				$ 142.25
2	WPW10317886		Screw   (Replaces: W10317886)			Immediately	$ 8.20
3	W11688565		Insulation, Door   (Replaces: W10772958)				$ 27.02
4	WPW10297318		Liner, Door   (Replaces: W10297318)			Immediately	$ 331.51
5	WPW10300487		Glass, Inner   (Replaces: W10300487)				$ 252.42
6	W11107394		Door, Handle (black)   (Replaces: W11022643)				$ 229.46
7	W10334031		Trim, Door Bottom (black)				$ 77.86
8	WPW10031790		Screw   (Replaces: W10031790)			Immediately	$ 8.74
9	W10294853		Bracket, Glass Liner			Immediately	$ 237.04
10	WPW10440013		Hinge, Door (active)   (Replaces: W10440013)			Immediately	$ 63.80
11	W10334004		Trim, Door Side (black)				$ 233.76
12	W11116956		Rail, Door   (Replaces: W10294851)				$ 133.75
13	W11705268		Glass, Outer (black)   (Replaces: W11687919)			Immediately	$ 135.33
14	W11178521		Badge   (Replaces: W10884775)			Immediately	$ 63.13
15	W10917796		Standoff, Handle (black)				$ 72.01
16	W10896982		Screw   (Replaces: W10477496)				$ 8.40
17	WP355214		Screw   (Replaces: W10327235)			Immediately	$ 8.80
18	W10777162		Screw   (Replaces: W10031780)			Immediately	$ 8.26
