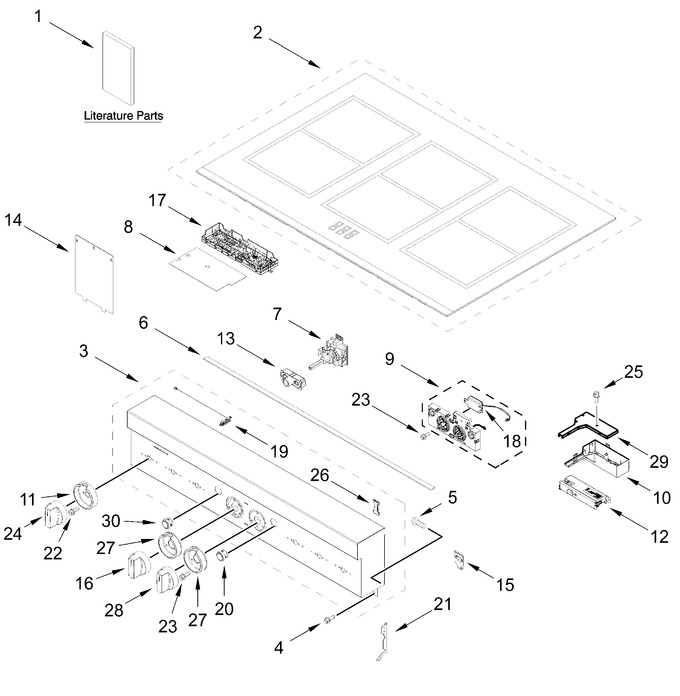

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	ARI4741983F61CAC445F12C0C1FD1B613C1		Literature Parts		Appelez-nous	-
2	W11770806		Glass Cooktop Assembly   (Replaces: W11704337)				$ 1,658.11
3	W11766175		Panel, Console   (Replaces: W11696865)		Appelez-nous	-
4	WP3196557		Screw   (Replaces: 3196537)			Immediately	$ 7.95
5	3196265		Screw   (Replaces: 3400099)		Appelez-nous	-
6	W11766188		Gasket, Console   (Replaces: W11697601)		Appelez-nous	-
7	W11765221		Switch, Infinite   (Replaces: W11704441)			Immediately	$ 67.10
8	W11320149		Barrier, Appliance Manager   (Replaces: W11281269)				$ 130.57
9	W11492269		Interface, User   (Replaces: W11436324)			Immediately	$ 573.94
10	W11320411		Cover, Wifi Outer   (Replaces: W11205795)		Appelez-nous	-
11	W11766173		Bezel, Cooktop (brass)   (Replaces: W11682907)				$ 89.91
12	W11234290		Wifi Module Assembly   (Replaces: W11110768)				$ 179.89
13	W11766154		Sleeve, Bezel   (Replaces: W11697214)		Appelez-nous	-
14	W10115843		Cover, Ignition		Appelez-nous	-
15	W11318207		Spring Clip, Range   (Replaces: W11036559)				$ 12.88
16	W11596839		Knob, Oven Mode (stainless)   (Replaces: W11496092)				$ 118.01
17	W11766174		Manager, Powermax Appliance   (Replaces: W11740603)				$ 424.11
18	W11123146		Speaker Assembly   (Replaces: W10568405)				$ 80.93
19	W11318855		Antenna, Wifi   (Replaces: W11130078)				$ 228.92
20	W11319196		Button Assembly, Oven Start   (Replaces: W11090650)				$ 23.67
21	W10130760		Bracket, Moving Console (left)				$ 75.94
22	W11765213		Screw   (Replaces: W11736176)				$ 29.86
23	WP3400814		Screw   (Replaces: 3400814)				$ 4.62
24	W11766185		Knob, Cooktop (stainless)   (Replaces: W11682646)		Appelez-nous	-
25	7101P62460		Screw		Appelez-nous	-
26	W11318856		Light Pipe Assembly   (Replaces: W10896369)				$ 109.35
27	W11317499		Bezel, Oven (stainless)   (Replaces: W10914998)				$ 28.02
28	W11574369		Knob, Oven Temperature (stainless)   (Replaces: W11496091)				$ 118.01
29	W11320410		Cover, Wifi Inner   (Replaces: W11205794)		Appelez-nous	-
30	W11318857		Button Assembly, Oven Light   (Replaces: W11090651)				$ 23.81
	W10130759		Bracket, Moving Console (right)				$ 75.94
	W11544575		Bracket, Anti-tip   (Replaces: W10253333)				$ 59.88
	ARI7C4B781E09F4C135E8A56A812FBF5A4D		Following Parts Not Illustrated		Appelez-nous	-
	7101P48560		Screw, Anti-tip Kit		Appelez-nous	-
	W11714372		Owner's Manual		Appelez-nous	-
	W11714373		Quick Start Guide		Appelez-nous	-
	W11184746		Guide, Internet Connectivity		Appelez-nous	-
	W11735605		Diagram, Wiring (cooktop)		Appelez-nous	-
	W11747772		Diagram, Wiring (oven)		Appelez-nous	-
	W11202265		Sheet, Tech		Appelez-nous	-
	W11321066		Cord, Power   (Replaces: W11212216)				$ 118.94
	W11766172		Line Filter   (Replaces: W11733662)			Immediately	$ 182.07
	W11765166		Harness, User Interface Display   (Replaces: W11705029)		Appelez-nous	-
	W11317791		Harness, Wifi   (Replaces: W11242785)				$ 113.72
	W11200325		Harness, Communication				$ 116.19
	W10780278		Harness, Door Lock			Immediately	$ 95.87
	W11766171		Harness, Console   (Replaces: W11698528)		Appelez-nous	-
	W11766170		Harness, Main (36 In)   (Replaces: W11729647)				$ 501.88
