SELECT A DIAGRAM

Chassis Parts


Cooktop And Control Panel Parts


Induction Module Parts


Internal Oven Parts


Optional Parts (not Included)


Oven Door Parts


Oven Parts


Venting Parts

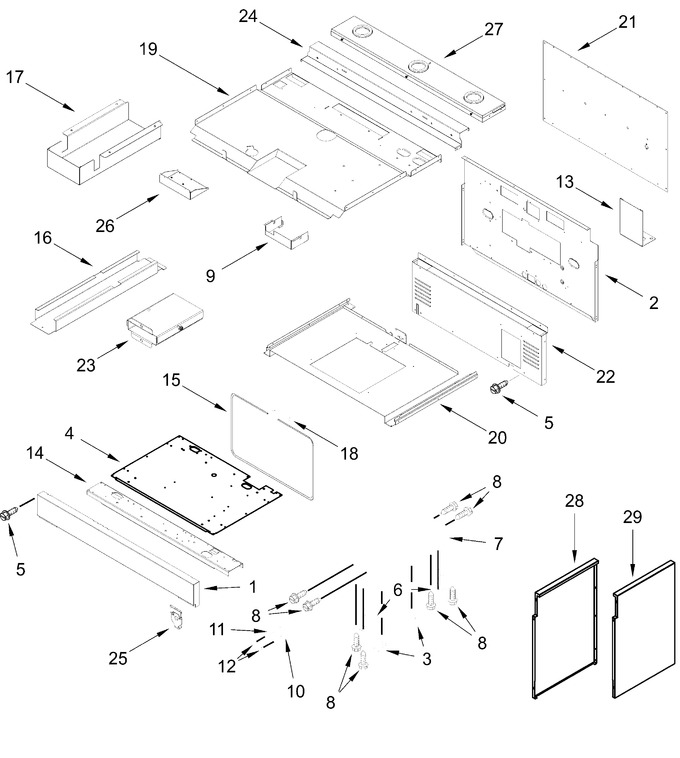

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11333399		Kickplate   (Replaces: W10883794)				$ 350.13
2	W11766189		Back, Chassis   (Replaces: W11758515)		Appelez-nous	-
3	WPW10138054		Roller Assembly   (Replaces: W10138054)				$ 45.34
4	W11095572		Duct, Bottom (36 In)		Appelez-nous	-
5	7101P42660		Screw		Appelez-nous	-
6	W10859931		Leveler   (Replaces: 9760860)				$ 119.11
7	W10908710		Base, Leveling Leg				$ 145.26
8	WP4449743		Screw   (Replaces: 4449743)				$ 7.55
9	W11369237		Cabinet, Appliance Manager				$ 89.38
10	W10115869		Shaft, Long			Immediately	$ 109.36
11	W10115793		Shaft, Short				$ 75.83
12	489504		E-ring				$ 7.40
13	W11765962		Bracket, Rear Chassis   (Replaces: W11758326)		Appelez-nous	-
14	W11087493		Support, Channel				$ 93.00
15	W11676901		Gasket, Oven (36 In)   (Replaces: W11115330)				$ 75.74
16	W11765275		Duct-chassis, Rear   (Replaces: W11695987)		Appelez-nous	-
17	W11368831		Channel, Wire		Appelez-nous	-
18	W11362015		Retainer, Gasket (9 In)				$ 158.18
19	W11324985		Top, Chassis		Appelez-nous	-
20	W11040801		Chassis, Bottom				$ 223.69
21	W11766191		Panel, Top Back   (Replaces: W11683557)		Appelez-nous	-
22	W11034133		Panel, Back Bottom				$ 65.16
23	W11765960		Duct, Extension   (Replaces: W11695808)		Appelez-nous	-
24	W11766196		Bracket, Front   (Replaces: W11695005)		Appelez-nous	-
25	W11318207		Spring Clip, Range   (Replaces: W11036559)				$ 12.88
26	W11320147		Drawer, Appliance Manager   (Replaces: W11106341)		Appelez-nous	-
27	W11766195		Duct, Top   (Replaces: W11694890)		Appelez-nous	-
28	W11765277		Panel, Cabinet Side (left)   (Replaces: W11707979)		Appelez-nous	-
29	W11765278		Panel, Cabinet Side (right)   (Replaces: W11707981)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
