Chassis Parts
Control Panel Parts
Cooktop Parts
Door Parts
Drawer And Broiler Parts
Manifold Parts
Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:

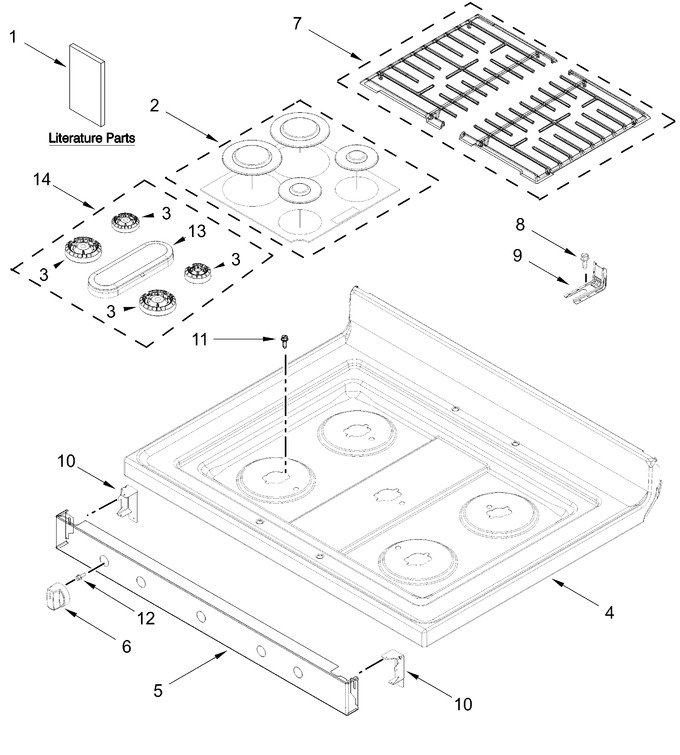

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | ARI4741983F61CAC445F12C0C1FD1B613C1 | Literature Parts |
|
- | |||||
| 2 | W11455147 | Cap Kit (black Set Of 4) (Replaces: W11395131) |
|
Immediately | $ 99.73 | ||||
| 3 | W11435630 | Spreader, Flame (Replaces: W11352018) |
|
Immediately | $ 82.12 | ||||
| 4 | W11454367 | Cooktop (black) (Replaces: W11418086) |
|
Immediately | $ 435.20 | ||||
| 5 | W11159626 | Panel, Manifold (stainless) (Replaces: W11050776) |
|
- | |||||
| 6 | W11766165 | Knob (stainless) (Replaces: W11742982) |
|
- | |||||
| 7 | W11101497 | Grate, Kit (black) (Replaces: W10911970) |
|
$ 364.92 | |||||
| 8 | 7101P48560 | Screw, Anti-tip Kit |
|
- | |||||
| 9 | W11839019 | Bracket, Anti-tip (Replaces: W11379945) |
|
Immediately | $ 28.54 | ||||
| 10 | 8523249 | Bracket, Manifold |
|
- | |||||
| 11 | W11241230 | Screw (Replaces: W10673618) |
|
Immediately | $ 14.73 | ||||
| 12 | WP3196557 | Screw (Replaces: 3196557) |
|
Immediately | $ 7.95 | ||||
| 13 | W11475513 | Oval Burner Assembly (Replaces: W11357363) |
|
$ 109.81 | |||||
| 14 | W11662402 | Surface Burner, Kit (black ) (Replaces: W11367107) |
|
Immediately | $ 130.11 | ||||
| ARI283693F3486669333C7F1EE938CD8A5B | (right Rear) |
|
- | ||||||
| W11244557 | Screw (Replaces: 3196173) |
|
$ 14.29 | ||||||
| ARI4161C13224327CEF50F25F5BEF1B73C7 | (grounding) |
|
- | ||||||
| ARI7A67B14AEA62F6D2A04BCF7D52CA12EE | (center) |
|
- | ||||||
| W11745568 | Owners Manual |
|
- | ||||||
| W11745570 | Quick Start Guide |
|
- | ||||||
| W11746529 | Tech Sheet |
|
- | ||||||
| ARI68146C2FADA8E1AE3122F181AC9275E2 | (left Front, Right Front) |
|
- | ||||||
| W11435657 | Spreader, Flame (Replaces: W11352021) |
|
$ 84.43 | ||||||
| ARIF7E7CB4EEF4E7DE47369C6A29EE1E0F9 | (left Rear) |
|
- | ||||||
| W11435659 | Spreader, Flame (Replaces: W11352020) |
|
$ 84.85 | ||||||
| 7111P01760 | Clamp, Wire |
|
- | ||||||
| 16515 | Clip, Harness (Replaces: 313438) |
|
$ 20.53 | ||||||
| W10334923 | Clip, Gas Wiring |
|
- | ||||||
| 3400964 | Clip, Wire (Replaces: 3196520) |
|
$ 89.00 | ||||||
| 3196896 | Clip, Wire |
|
- | ||||||
| W11645866 | Harness, Bake And Broil (Replaces: W11450461) |
|
$ 38.49 | ||||||
| W11752202 | Harness, Main (Replaces: W11457191) |
|
- | ||||||
| ARI7C4B781E09F4C135E8A56A812FBF5A4D | Following Parts Not Illustrated |
|
- |
