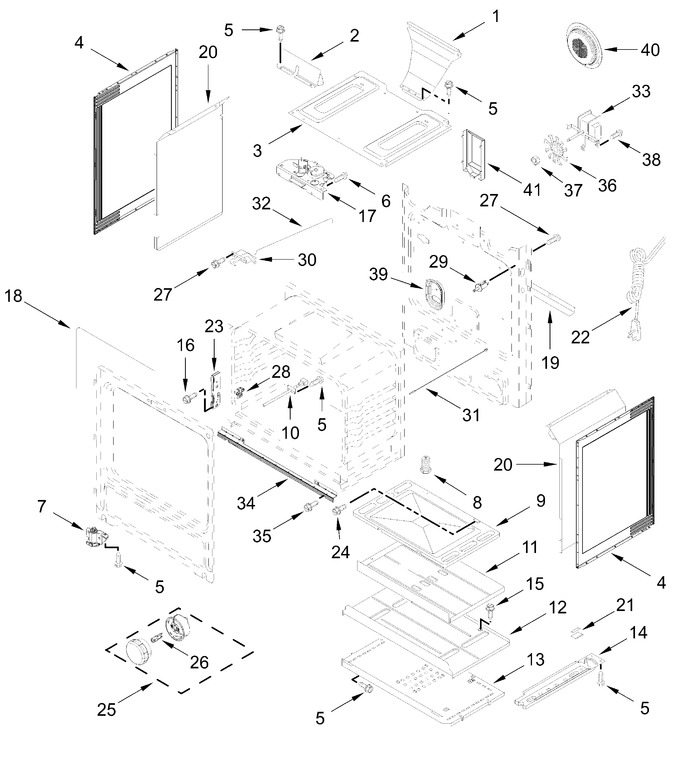

Chassis Parts
Control Panel Parts
Cooktop Parts
Door Parts
Drawer And Broiler Parts
Manifold Parts
Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11457094 | Box, Flue |
|
$ 157.80 | |||||
| 2 | WP8272747 | Shield, Flue (Replaces: 8272747) |
|
$ 74.51 | |||||
| 3 | W11379351 | Box-burner, Gas Sealed |
|
$ 64.19 | |||||
| 4 | W11730303 | Panel, Side (black) (Replaces: W10162245) |
|
Immediately | $ 178.50 | ||||
| 5 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.72 | ||||
| 6 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.95 | ||||
| 7 | WPW10341186 | Front Foot, Assembly (Replaces: W10341186) |
|
Immediately | $ 32.59 | ||||
| 8 | WPW10058460 | Foot, Leveling (rear) (Replaces: W10058460) |
|
Immediately | $ 8.24 | ||||
| 9 | W11730226 | Bottom, Oven (Replaces: 3195097) |
|
$ 231.05 | |||||
| 10 | W10833885 | Sensor (Replaces: W10586204) |
|
Immediately | $ 140.71 | ||||
| 11 | 8053967 | Baffle, Burner Oven |
|
$ 315.96 | |||||
| 12 | 8053969 | Shield, Heat |
|
$ 113.04 | |||||
| 13 | W11730232 | Shield, Lower (Replaces: W11640074) |
|
- | |||||
| 14 | W11818353 | Base Rail, Assembly (left) (Replaces: W10390008) |
|
$ 62.66 | |||||
| 15 | W11233072 | Screw (Replaces: W10362924) |
|
Immediately | $ 14.72 | ||||
| 16 | W10777162 | Screw (Replaces: W10031780) |
|
Immediately | $ 8.26 | ||||
| 17 | WPW10107820 | Rear Door Latch Assembly (Replaces: W10107820) |
|
$ 309.55 | |||||
| 18 | W11542153 | Seal, Door (Replaces: W11491751) |
|
Immediately | $ 50.20 | ||||
| 19 | W10435470 | Brace, Main Back |
|
$ 81.74 | |||||
| 20 | W11379353 | Retainer, Insulation (left) |
|
- | |||||
| 21 | W10137382 | Clip, Panel |
|
Immediately | $ 48.42 | ||||
| 22 | W11582239 | Cord, Power (Replaces: W10910642) |
|
$ 17.59 | |||||
| 23 | W10647259 | Receiver, Hinge (Replaces: W10289077) |
|
Immediately | $ 9.32 | ||||
| 24 | W10379120 | Screw |
|
- | |||||
| 25 | W11707255 | Light Assembly (Replaces: W11634772) |
|
Immediately | $ 40.75 | ||||
| 26 | WPW10571723 | Bulb, Halogen 40 Watts (Replaces: W10571723) |
|
Immediately | $ 27.71 | ||||
| 27 | W11169708 | Screw (Replaces: 3196560) |
|
$ 13.36 | |||||
| 28 | W10807823 | Glide, Drawer Front (Replaces: W10674705) |
|
Immediately | $ 19.30 | ||||
| 29 | W11620712 | Switch, Door (Replaces: W11511828) |
|
$ 46.31 | |||||
| 30 | WP9761013 | Front Door Latch Assembly (Replaces: 9761013) |
|
$ 256.36 | |||||
| 31 | 9757239 | Rod, Door Switch |
|
$ 96.37 | |||||
| 32 | W10078370 | Rod, Push Latch |
|
$ 95.24 | |||||
| 33 | W11548751 | Fan Motor, Convection (Replaces: W11403615) |
|
$ 164.78 | |||||
| 34 | W11464547 | Bracket, Front Frame |
|
$ 45.89 | |||||
| 35 | W11684512 | Screw (Replaces: 3400080) |
|
$ 14.81 | |||||
| 36 | W11548753 | Blade, Fan (Replaces: W11425715) |
|
Immediately | $ 157.63 | ||||
| 37 | W11548755 | Nut, Acorn (lh) (Replaces: W11433702) |
|
$ 15.38 | |||||
| 38 | WP4449809 | Screw (Replaces: 4449809) |
|
Immediately | $ 7.55 | ||||
| 39 | W10134126 | Bracket, Fan |
|
$ 23.98 | |||||
| 40 | WPW10134124 | Cover, Conv Fan (Replaces: W10134124) |
|
Immediately | $ 102.59 | ||||
| 41 | W10158780 | Cover, Rear Fan |
|
$ 118.48 | |||||
| W11688737 | Insulation, Back (Replaces: W10180437) |
|
$ 122.73 | ||||||
| W11684915 | Insulation, Wrap (Replaces: 8524099) |
|
$ 123.64 | ||||||
| ARI7C4B781E09F4C135E8A56A812FBF5A4D | Following Parts Not Illustrated |
|
- | ||||||
| W11818353 | Base Rail, Assembly (right) (Replaces: W10390007) |
|
$ 62.66 | ||||||
| W11379943 | Retainer, Insulation (right) |
|
- |
