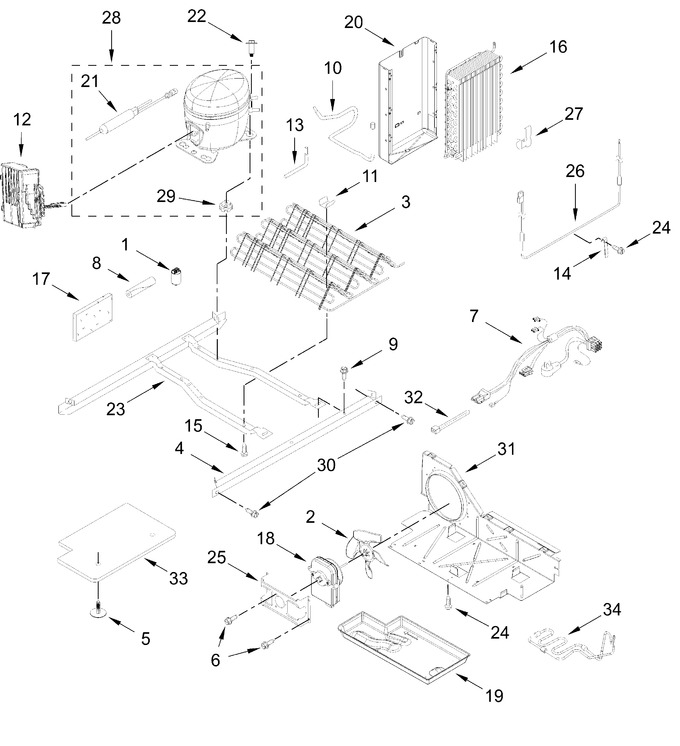

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10738041 | Filter, Emi |
|
$ 52.31 | |||||
| 2 | W11458267 | Blade, Fan (Replaces: 2225834) |
|
Immediately | $ 25.19 | ||||
| 3 | W11632924 | Condenser (Replaces: W11553540) |
|
Immediately | $ 237.55 | ||||
| 4 | W10905882 | Rail, Unit Mounting |
|
$ 123.35 | |||||
| 5 | 489396 | Clip |
|
$ 11.26 | |||||
| 6 | WP8533993 | Screw (Replaces: 8533993) |
|
$ 11.21 | |||||
| 7 | W11779144 | Harness, Unit (includes Power Cord) (Replaces: W11564654) |
|
- | |||||
| 8 | W11751592 | Sleeve (Replaces: W10303521) |
|
Immediately | $ 21.32 | ||||
| 9 | WP489427 | Screw (Replaces: 489427) |
|
$ 7.84 | |||||
| 10 | W11505002 | Tube, Suction |
|
- | |||||
| 11 | W10683556 | Clip, Condenser (Replaces: 2311725) |
|
$ 19.38 | |||||
| 12 | W11779143 | Inverter (Replaces: W11565226) |
|
- | |||||
| 13 | W11558176 | Tube, Process (Replaces: W11509632) |
|
- | |||||
| 14 | W11611126 | Heat Probe (Replaces: W11399989) |
|
$ 23.16 | |||||
| 15 | W11544659 | Screw (Replaces: 8281232) |
|
$ 14.35 | |||||
| 16 | W11546605 | Evaporator (Replaces: W11357917) |
|
Immediately | $ 253.33 | ||||
| 17 | W11553819 | Insulation, Sound Deadening (Replaces: 2169104) |
|
Immediately | $ 14.77 | ||||
| 18 | W11578915 | Motor, Condenser Fan (Replaces: W11546724) |
|
Immediately | $ 71.42 | ||||
| 19 | W11678304 | Tray, Evaporator (Replaces: W11562498) |
|
$ 57.39 | |||||
| 20 | W11546608 | Heat Shield And Drain Pan Assembly (Replaces: W11400739) |
|
- | |||||
| 21 | W11109499 | Drier (service Drier Without Dye) (Replaces: W10805035) |
|
Immediately | $ 39.12 | ||||
| 22 | W11417341 | Screw (Replaces: W10476309) |
|
$ 14.07 | |||||
| 23 | W10905880 | Frame, Unit Mounting (includes Unit Mounting Rail) |
|
$ 137.78 | |||||
| 24 | WP489478 | Screw (Replaces: 489478) |
|
$ 8.18 | |||||
| 25 | WP2181929 | Bracket, Fan Mounting (Replaces: 2181929) |
|
$ 12.93 | |||||
| 26 | W11546981 | Heater, Defrost (Replaces: W11355311) |
|
$ 133.28 | |||||
| 27 | W11623163 | Clip (Replaces: 2304287) |
|
- | |||||
| 28 | W11557671 | Compressor (Replaces: W11482390) |
|
Immediately | $ 728.13 | ||||
| 29 | WPW10169124 | Grommet, Compressor (Replaces: 10835903) |
|
$ 7.55 | |||||
| 30 | 489340 | Bolt |
|
- | |||||
| 31 | W10896764 | Baffle, Air |
|
$ 101.20 | |||||
| 32 | WPW10339879 | Tie, Wire (Replaces: 2263990) |
|
$ 8.30 | |||||
| 33 | W10905940 | Assembly, Unit Cover (bottom) |
|
- | |||||
| 34 | W11678305 | Precooler Assembly, Formed (includes Dampener) (Replaces: W11442858) |
|
$ 66.63 | |||||
| ARI9DB1782F4B859D7C165427A2DBD8ECFF | 60 Grams (r600a) |
|
- | ||||||
| ARIA203FEA88A0C0545C484B4E1C20B771B | Refrigerant Charge |
|
- |
