SELECT A DIAGRAM

Chassis Parts


Control Panel Parts


Cooktop Parts


Door Parts


Drawer Parts


Optional Parts

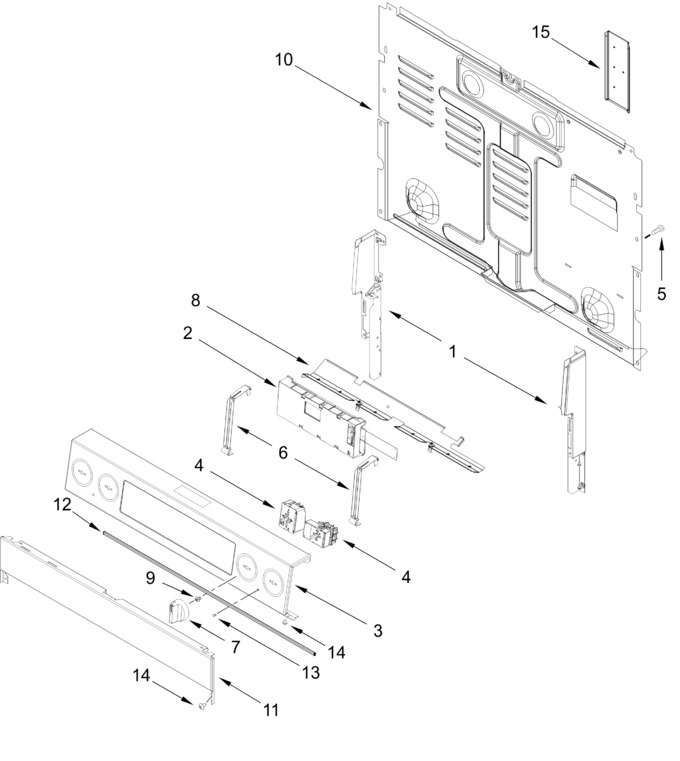

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11728387		Console, Endcap (stainless, Left)   (Replaces: W11625424)				$ 116.19
2	W11728323		Control, Electronic (black)   (Replaces: W11637092)		Appelez-nous	-
3	W11728330		Panel Console (stainless)   (Replaces: W11730158)		Appelez-nous	-
4	W10857622		Switch, Infinite   (Replaces: W10437092)			Immediately	$ 211.69
5	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 14.72
6	W11728256		Bracket, Control   (Replaces: W11371599)		Appelez-nous	-
7	W11728257		Knob (stainless)   (Replaces: W11584001)			Immediately	$ 42.37
8	W11747326		Shield, Heat   (Replaces: W11736649)		Appelez-nous	-
9	WP3400882		Screw   (Replaces: 3400882)			Immediately	$ 7.55
10	W11726751		Cover, Upper Rear   (Replaces: W11393668)				$ 131.99
11	W11728385		Lower Panel (stainless)   (Replaces: W11625403)		Appelez-nous	-
12	W11728258		Gasket, Lower Panel   (Replaces: W11643797)				$ 58.00
13	WP3196068		Lens, Indicator   (Replaces: 3196068)			Immediately	$ 6.26
14	WP3196557		Screw   (Replaces: 3196169)			Immediately	$ 7.95
15	W11747327		Cover, Rear Flue   (Replaces: W11736681)		Appelez-nous	-
	ARI68146C2FADA8E1AE3122F181AC9275E2		(left Front, Right Front)		Appelez-nous	-
	W10911303		Switch, Infinite   (Replaces: W10578768)			Immediately	$ 104.64
	W11728386		Console, Endcap (stainless, Right)   (Replaces: W11625421)			Immediately	$ 116.19
	ARIAF8B2CF0387D82C1B76CFE2500CD62C6		(left Rear, Right Rear)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
