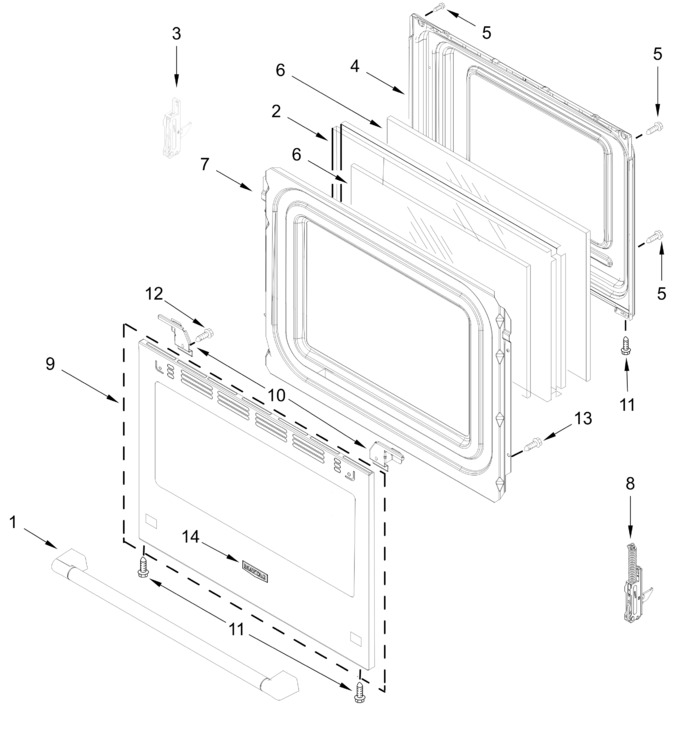

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11648982 | Door, Handle (stainless) (Replaces: W11495825) |
|
$ 197.87 | |||||
| 2 | W11353036 | Frame, Glass |
|
- | |||||
| 3 | WPW10299227 | Hinge, Door (passive) (Replaces: W10299227) |
|
Immediately | $ 66.85 | ||||
| 4 | WP9761344 | Liner, Door (Replaces: 9761344) |
|
Immediately | $ 335.60 | ||||
| 5 | WPW10031790 | Screw (Replaces: W10031790) |
|
Immediately | $ 8.31 | ||||
| 6 | W11399628 | Glass, Inner (Replaces: W11367326) |
|
$ 154.51 | |||||
| 7 | W11841241 | Retainer, Insulation (Replaces: W11686928) |
|
- | |||||
| 8 | WPW10299226 | Hinge, Active (Replaces: W10299226) |
|
Immediately | $ 83.84 | ||||
| 9 | W11750806 | Outer Door (includes Badge, Stainless) (Replaces: W11631961) |
|
- | |||||
| 10 | W11726808 | Bracket, Handle Mount (right) (Replaces: W11157607) |
|
- | |||||
| 11 | WP355214 | Screw (Replaces: W10327235) |
|
Immediately | $ 7.92 | ||||
| 12 | WP3196154 | Screw (Replaces: 3196154) |
|
$ 7.60 | |||||
| 13 | W10777162 | Screw (Replaces: W10031780) |
|
Immediately | $ 7.43 | ||||
| 14 | W11648754 | Badge (Replaces: W11628148) |
|
Immediately | $ 38.16 | ||||
| W11726809 | Bracket, Handle Mount (left) (Replaces: W11417442) |
|
$ 26.72 |
