Base Plate Parts


Control Panel Parts


Drawer Parts


Interior Parts


Oven Cavity Parts


Switch Parts

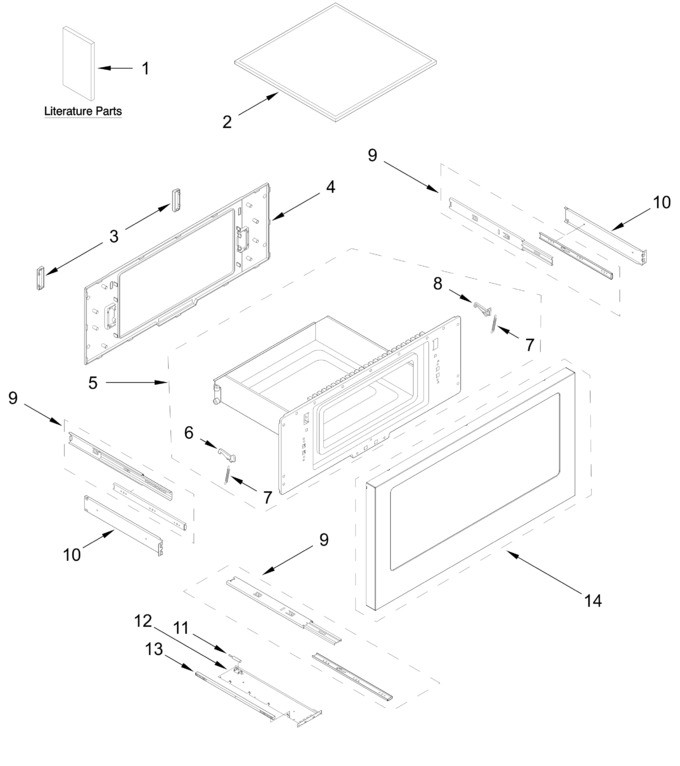

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	ARI4741983F61CAC445F12C0C1FD1B613C1		Literature Parts		Appelez-nous	-
2	W11216070		Tray, Oven   (Replaces: W11214965)				$ 259.91
3	W11201390		Cover, Support				$ 70.68
4	W11201870		Cover, Choke		Appelez-nous	-
5	W11747053		Assembly, Drawer   (Replaces: W11746789)				$ 477.99
6	W11646236		Hook, Left Latch		Appelez-nous	-
7	W11646237		Spring, Latch		Appelez-nous	-
8	W11646234		Hook, Right Latch		Appelez-nous	-
9	W11747047		Slide, Drawer   (Replaces: W11746784)		Appelez-nous	-
10	W11747046		Support, Side   (Replaces: W11746783)		Appelez-nous	-
11	W11685617		Piston, Door Stop   (Replaces: W11201804)				$ 88.77
12	W11201393		Support, Bottom		Appelez-nous	-
13	W11444631		Gear, Drawer		Appelez-nous	-
14	W11209971		Panel, Door				$ 521.84
	W11199540		Cord, Power				$ 175.31
	ARI7C4B781E09F4C135E8A56A812FBF5A4D		Following Parts Not Illustrated		Appelez-nous	-
	W11101482		Tech Sheet		Appelez-nous	-
	W11103357		Installation Instructions		Appelez-nous	-
	W11362536		Harness, Main				$ 147.48
	W11103355		Use And Care Guide		Appelez-nous	-
	W11109162		Cooking Guide (english)		Appelez-nous	-
