SELECT A DIAGRAM

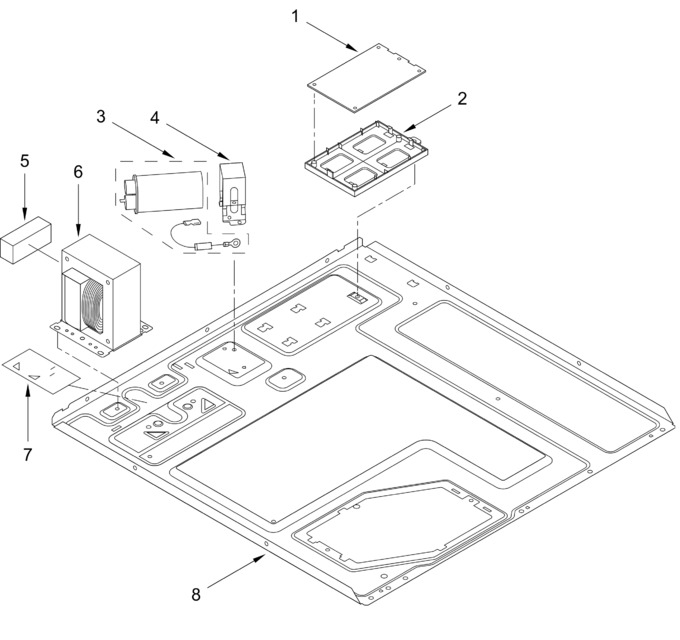

Base Plate Parts
Control Panel Parts
Drawer Parts
Interior Parts
Oven Cavity Parts
Switch Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11747041 | Supply, Power (Replaces: W11746774) |
|
$ 316.70 | |||||
| 2 | W11201745 | Holder, Control |
|
- | |||||
| 3 | W11596133 | Capacitor, High Voltage (Replaces: W11362530) |
|
$ 126.74 | |||||
| 4 | W11201396 | Bracket, Capacitor |
|
- | |||||
| 5 | W11747051 | Cushion, Transformer (Replaces: W11746791) |
|
- | |||||
| 6 | W11610132 | Transformer, High Voltage (Replaces: W11199548) |
|
$ 345.31 | |||||
| 7 | W11202128 | Cover, Waveguide |
|
$ 53.53 | |||||
| 8 | W11201391 | Plate, Base |
|
- |
