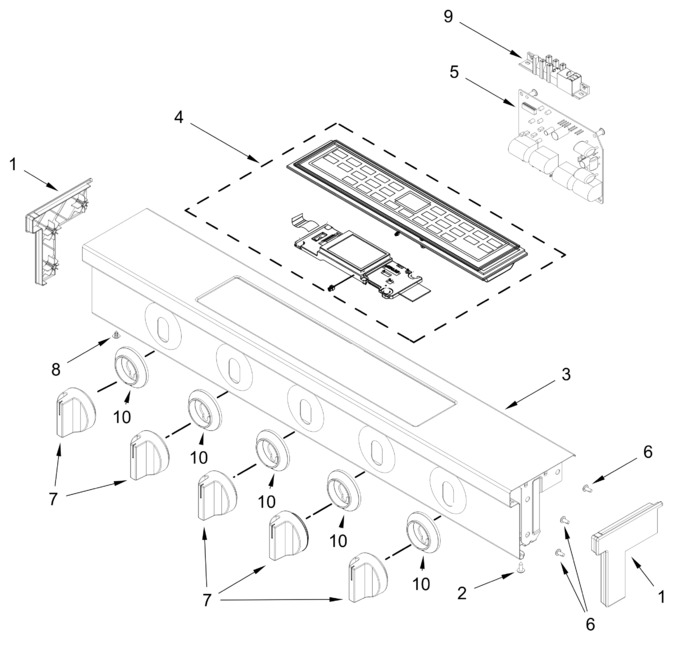

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11776746 | Console, Endcap (grey, Left) (Replaces: W11742723) |
|
Immediately | $ 115.61 | ||||
| 2 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 13.25 | ||||
| 3 | W11809828 | Panel, Control (stainless) (Replaces: W11698936) |
|
- | |||||
| 4 | W11812071 | Control, User Interface (Replaces: W11688270) |
|
$ 419.37 | |||||
| 5 | W10898291 | Module, Spark Dsi (Replaces: W10818365) |
|
Immediately | $ 329.08 | ||||
| 6 | W11245710 | Screw (Replaces: 9780274) |
|
Immediately | $ 13.28 | ||||
| 7 | W11730270 | Knob (grey) (Replaces: W11632045) |
|
$ 61.43 | |||||
| 8 | WP355214 | Screw (Replaces: W10327235) |
|
Immediately | $ 7.92 | ||||
| 9 | W11703692 | Spark Module (Replaces: W11350452) |
|
Immediately | $ 86.99 | ||||
| 10 | W11730233 | Bezel (grey) (Replaces: W11632247) |
|
$ 57.29 | |||||
| W11776748 | Console,endcap (grey, Right) (Replaces: W11742725) |
|
Immediately | $ 115.61 |
