View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
Chassis Parts
Control Panel Parts
Cooktop Parts
Door Parts
Drawer Parts
Manifold Parts
Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:

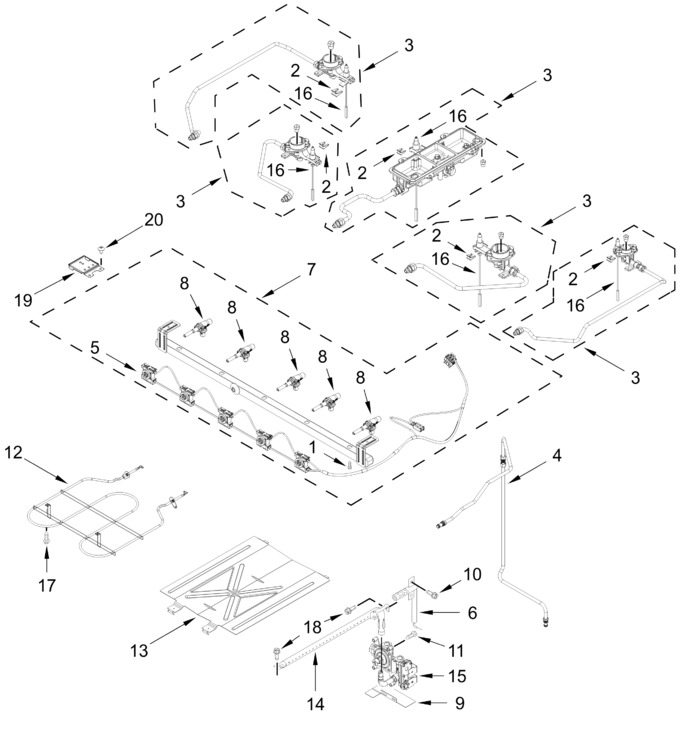

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11727164 | Screw (Replaces: W11402213) |
|
- | |||||
| 2 | W11684564 | Electrode, Spring (Replaces: W10827923) |
|
Immediately | $ 11.39 | ||||
| 3 | W11770968 | Orifice Assembly (Replaces: W11300875) |
|
- | |||||
| 4 | W11796249 | Tubing (manifold To Regulator) (Replaces: W11384792) |
|
$ 118.18 | |||||
| 5 | W11771007 | Harness, Igniter (includes Switches) (Replaces: W11723597) |
|
- | |||||
| 6 | W11524031 | Electrode, Bake (Replaces: W11450459) |
|
Immediately | $ 78.97 | ||||
| 7 | W11770976 | Manifold Assembly (Replaces: W11279822) |
|
- | |||||
| 8 | W11728580 | Valve, Single (Replaces: W11279839) |
|
Immediately | $ 84.85 | ||||
| 9 | W10224921 | Bracket, Aegis |
|
- | |||||
| 10 | W11684507 | Screw (Replaces: 3196385) |
|
$ 12.84 | |||||
| 11 | WP3400016 | Screw (Replaces: 3400016) |
|
$ 7.55 | |||||
| 12 | W11847084 | Element, Broiler (Replaces: W10714060) |
|
$ 106.10 | |||||
| 13 | WPW10184491 | Spreader, Flame (oven) (Replaces: W10184491) |
|
$ 228.17 | |||||
| 14 | WP9758078 | Burner, Bake (Replaces: 9758078) |
|
$ 203.46 | |||||
| 15 | W10898290 | Regulator (Replaces: W10818355) |
|
Immediately | $ 354.29 | ||||
| 16 | W11453940 | Electrode (Replaces: W11428831) |
|
$ 58.01 | |||||
| 17 | W11233072 | Screw (Replaces: W10362924) |
|
Immediately | $ 13.25 | ||||
| 18 | 3196265 | Screw |
|
- | |||||
| 19 | W11770975 | Orifice Bracket (Replaces: W11649812) |
|
- | |||||
| 20 | 3196172 | Screw |
|
Immediately | $ 12.12 | ||||
| ARI7C4B781E09F4C135E8A56A812FBF5A4D | Following Parts Not Illustrated |
|
- | ||||||
| W11747658 | Orifice Holder Assembly (10k) (Replaces: W11300868) |
|
- | ||||||
| ARI5A21FEE31EB202DDA189D0EC8CA36187 | (left Front, Left Rear) |
|
- | ||||||
| ARI7A67B14AEA62F6D2A04BCF7D52CA12EE | (center) |
|
- | ||||||
| ARIA12C7E5D311C54B1AACBC1820DF34957 | (right Front) |
|
- | ||||||
| ARI283693F3486669333C7F1EE938CD8A5B | (right Rear) |
|
- | ||||||
| ARIF7E7CB4EEF4E7DE47369C6A29EE1E0F9 | (left Rear) |
|
- | ||||||
| ARI76BF577D359F4F7B6AC1C45BB9FB0006 | (left Front) |
|
- | ||||||
| W11770970 | Orifice Assembly (Replaces: W11300889) |
|
- | ||||||
| W11747656 | Orifice Holder Assembly (18k) (Replaces: W11300884) |
|
$ 68.71 | ||||||
| W11747653 | Orifice Holder Assembly (5k) (Replaces: W11300872) |
|
Immediately | $ 69.19 | |||||
| W11730274 | Kit, Lp Conversion (orifice, Set Of 5) (Replaces: W11368273) |
|
$ 56.99 | ||||||
| WPW10182767 | Tie, Wire (Replaces: W11402210) |
|
$ 6.57 | ||||||
| W11728578 | Valve, Single (Replaces: W11279837) |
|
- | ||||||
| W11728579 | Valve, Single (Replaces: W11279838) |
|
- | ||||||
| W11763416 | Orifice, Lp Bake (Replaces: W10838304) |
|
$ 46.90 | ||||||
| ARIE2F766571ECE19AAAC256E04B35496EC | (left Front, Right Front, Center) |
|
- | ||||||
| W11453920 | Electrode (Replaces: W11428858) |
|
$ 57.92 | ||||||
| ARI5AD74B3C8D449725567FBC40A122921E | (right Front, Right Rear) |
|
- |
