Cabinet Parts


Cabinet Trim Parts


Freezer Door Parts


Freezer Liner And Icemaker Parts


Freezer Shelf Parts


Lower Unit And Tube Parts


Optional Parts


Refrigerator Door Parts


Refrigerator Liner And Control Parts


Refrigerator Shelf Parts


Top Grille And Unit Cover Parts


Upper Unit Parts

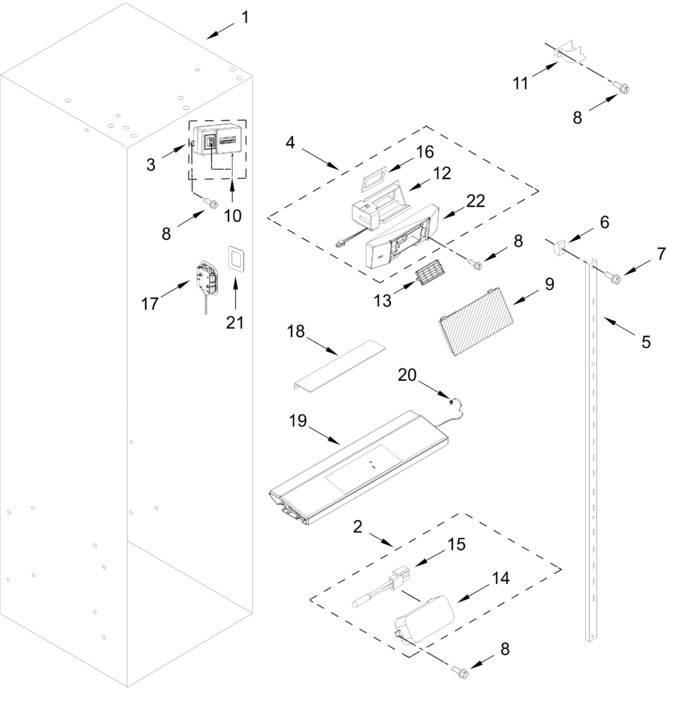

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	ARI1BA464D72C84DA7297AB1B09D16F5BB3		Liner (not A Serviceable Part)		Appelez-nous	-
2	W11759117		Thermistor Assembly   (Replaces: W11550867)			Immediately	$ 45.05
3	W11744513		Cover, Air Diffuser (includes Thermistor)   (Replaces: W11447197)				$ 130.58
4	W11741459		Diffuser Assembly   (Replaces: W11449567)				$ 415.21
5	W11481489		Ladder, Shelf		Appelez-nous	-
6	520965		Support, Ladder				$ 31.35
7	W10678207		Screw   (Replaces: W10832438)				$ 16.43
8	W10678210		Screw (black)				$ 19.80
9	W11480887		Cover, Diffuser (center)		Appelez-nous	-
10	WP2302937		Thermistor   (Replaces: 2302937)				$ 88.41
11	W10775705		Guard, Air Return		Appelez-nous	-
12	WP2220377		Baffle, Air   (Replaces: 2220377)			Immediately	$ 381.05
13	W10311524		Filter, Air   (Replaces: W10315189)			Immediately	$ 14.34
14	W11235125		Cover, Thermistor   (Replaces: W10912104)				$ 108.10
15	WP2188820		Thermistor   (Replaces: 2188820)			Immediately	$ 30.85
16	W11480891		Gasket, Air Baffle				$ 30.11
17	W11484836		Light Module, Led   (Replaces: W11229041)			Immediately	$ 27.01
18	W10782835		Diverter, Crisper Cover				$ 63.35
19	W11626127		User Interface Assembly   (Replaces: W11408127)			Immediately	$ 676.14
20	W11515049		Wire, User Interface Jumper		Appelez-nous	-
21	W10672548		Shim, Led				$ 21.11
22	W11449561		Cover, Air Diffuser		Appelez-nous	-
