SELECT A DIAGRAM

Cabinet Parts


Cabinet Trim Parts


Freezer Door Parts


Freezer Liner And Icemaker Parts


Freezer Shelf Parts


Lower Unit And Tube Parts


Optional Parts


Refrigerator Door Parts


Refrigerator Liner And Control Parts


Refrigerator Shelf Parts


Top Grille And Unit Cover Parts


Upper Unit Parts

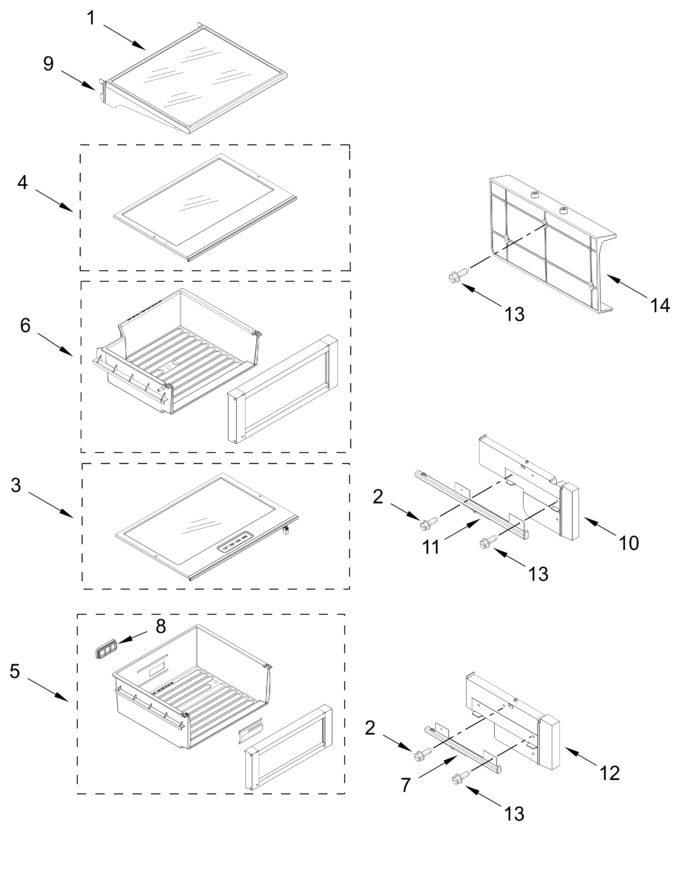

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11777987		Shelf Assembly   (Replaces: W11654571)		Appelez-nous	-
2	WP8533928		Screw   (Replaces: 8533928)			Immediately	$ 8.26
3	W11777986		Cover Assembly, Crisper   (Replaces: W11638138)		Appelez-nous	-
4	W11630243		Cover Assembly, Meat Pan   (Replaces: W11527870)			Immediately	$ 337.73
5	W11755562		Pan Assembly, Crisper   (Replaces: W11740827)			Immediately	$ 549.75
6	W11630280		Pan Assembly, Meat   (Replaces: W11450945)				$ 421.41
7	W10844011		Slide, Meat Pan Closer (left Hand)				$ 320.20
8	2307810		Duct, Deli Pan		Appelez-nous	-
9	W11690161		Sidearm, Shelf   (Replaces: W10605575)			Immediately	$ 51.64
10	W11451491		Spacer, Crisper		Appelez-nous	-
11	W10844010		Slide, Crisper (left Hand)			Immediately	$ 343.11
12	W11451493		Spacer, Meat		Appelez-nous	-
13	W10215666		Screw				$ 9.53
14	W11451492		Spacer, Shelf Ls		Appelez-nous	-
	ARIF959192793ABCBAD1A31237D162F5226		(right Hand)		Appelez-nous	-
	W10732727		Slide, Meat Pan Closer (right Hand)			Immediately	$ 342.94
	W10732303		Slide, Crisper (right Hand)			Immediately	$ 343.11
	ARI918EA51C669253CD37B34596C035B44C		Left Hand		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
