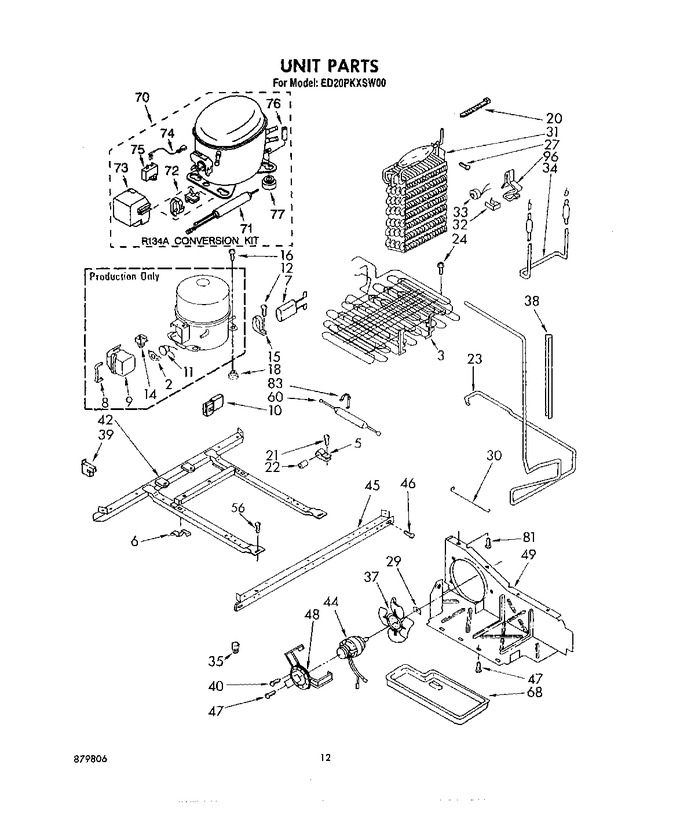

07 - Unit


08 - Airflow


09 - Control , Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	943494		Overload Spring		Appelez-nous	-
3	1105540		Condenser Assembly		Appelez-nous	-
5	510716		Clamp (2)		Appelez-nous	-
6	548744		Clip (2)		Appelez-nous	-
7	1101182		Running Capacitor (use With Production Compressor Only)		Appelez-nous	-
8	943497		Strap, Cover		Appelez-nous	-
9	943496		Cover		Appelez-nous	-
10	934326		Housing Plug		Appelez-nous	-
11	1114487		Overload		Appelez-nous	-
12	WP489128		Screw   (Replaces: 488500)				$ 10.88
14	945535		Relay		Appelez-nous	-
15	1101184		Clamp, Capacitor		Appelez-nous	-
16	876811		Screw, 1/4-28 X 1 (4)   (Replaces: 489116)				$ 7.79
18	876811		Grommet (4)   (Replaces: 1114359)				$ 7.79
20	851095		Strap		Appelez-nous	-
21	WPW10141625		Screw, 8-32 X 1/2 (2)   (Replaces: 488197)				$ 21.16
22	510769		Dampener (2)		Appelez-nous	-
23	1106989		Exchanger, Heat		Appelez-nous	-
24	WP489069		Screw (4)   (Replaces: 488480)			Immediately	$ 7.86
27	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 14.02
29	WP486692		Nut, Speed   (Replaces: 486692)				$ 7.82
30	1105612		Guard, Fan				$ 42.61
31	1106987		Evaporator		Appelez-nous	-
32	513584		Clamp		Appelez-nous	-
33	WP4387499		Bi-metal, Defrost   (Replaces: 1108199)				$ 120.86
34	1106969		Heater, Defrost		Appelez-nous	-
35	227991		Wire Connector		Appelez-nous	-
37	989524		Blade, Fan		Appelez-nous	-
38	1114634		Sleeve		Appelez-nous	-
39	943647		Receptacle, Housing		Appelez-nous	-
40	681390		Screw, 8-32 X 3/8 (3)   (Replaces: 489019)				$ 13.71
42	1105534		Frame		Appelez-nous	-
44	1105656		Motor, Fan			Immediately	$ 6.41
45	1105525		Rail, Front		Appelez-nous	-
46	489340		Screw, 5/16-18 X 5/8 (4)   (Replaces: 488683)		Appelez-nous	-
47	488624		Screw, 8 X 3/8		Appelez-nous	-
48	548695		Bracket, Fan Motor		Appelez-nous	-
49	1105529		Baffle, Air		Appelez-nous	-
56	488454		Screw, 1/4-28 X 1/2 (2)		Appelez-nous	-
60	W10843121		Drier   (Replaces: 1105550)			Immediately	$ 52.57
68	WPW10614158		Tray, Evaporator   (Replaces: 1105523)			Immediately	$ 113.18
70	4388005		Compressor (includes Items 71, 72, 73, 74, 75, 76, & 77) (also Order		Appelez-nous	-
70	876765		Tube Kit			Immediately	$ 90.65
71	W10843121		Drier   (Replaces: 4387019)			Immediately	$ 52.57
72	4387535		Overload/relay Asy   (Replaces: 4387767)				$ 191.05
73	WP2162358		Cover, Terminal   (Replaces: 4387731)				$ 90.75
74	WP2172890		Wire, Capacitor   (Replaces: 2172890)				$ 8.10
75	WP4387764		Capacitor   (Replaces: 4387764)				$ 177.04
76	4387559		Sleeve		Appelez-nous	-
77	WP4387558		Grommet   (Replaces: 4387558)				$ 6.95
81	489050		Screw, 8-32 X 1/2				$ 692.56
83	548508		Clamp, Drier		Appelez-nous	-
96	978026		Valve, Access (5/16``)			Immediately	$ 134.49
96	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 21.64
96	978028		Valve, Access (1/2)		Appelez-nous	-
96	978029		Valve Access (5/8``)				$ 93.85
96	978030		Valve, Access (3/4``)				$ 137.25
96	876764		Valve, Access(3/16``)			Immediately	$ 95.92
96	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 105.25
96	1108431		Clamp (4)		Appelez-nous	-
