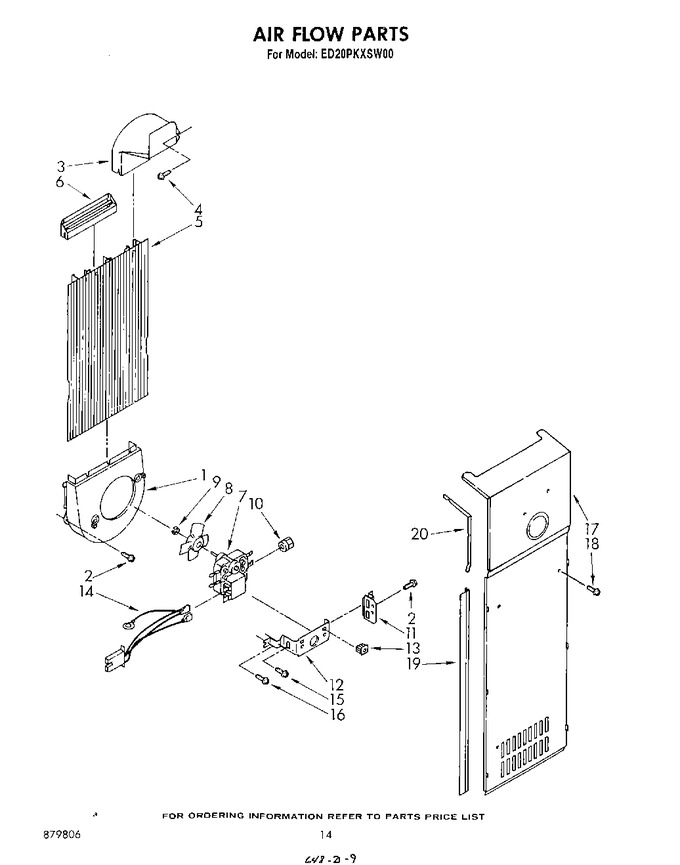

08 - Airflow


09 - Control , Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1108414		Fan Scroll		Appelez-nous	-
2	W11624204		Screw, (3) 8 X 1/2   (Replaces: 486194)				$ 14.02
3	1110798		Air Scoop		Appelez-nous	-
4	WP488729		Screw   (Replaces: 489176)			Immediately	$ 7.79
5	1108434		Air Duct Freezer		Appelez-nous	-
6	1118245		Diffuser Air Duct		Appelez-nous	-
7	SM999		Fan, Motor   (Replaces: 945523)			Immediately	$ 30.26
8	992920		Blade, Fan				$ 39.91
9	992953		Ring, Compression		Appelez-nous	-
10	548268		Fan Grommet (3)		Appelez-nous	-
11	548263		Fan, Bracket Double		Appelez-nous	-
12	548264		Fan, Bracket Single		Appelez-nous	-
13	538449		Screw Grommet		Appelez-nous	-
14	1110749		Fan Motor, Harness		Appelez-nous	-
15	WP489128		Screw, 8-32 X 3/8   (Replaces: 488500)				$ 10.88
16	WP489069		Screw, (2) 8 X 1/2   (Replaces: 488772)			Immediately	$ 7.86
17	1108435		Cover, Evaporator		Appelez-nous	-
18	WP488729		Screw, (6) 8-15 X 1/4   (Replaces: 489189)			Immediately	$ 7.79
19	1110675		Gasket, Evaporator Cover (2)		Appelez-nous	-
20	1110676		Gasket, Evaporator Cover Top (2)		Appelez-nous	-
