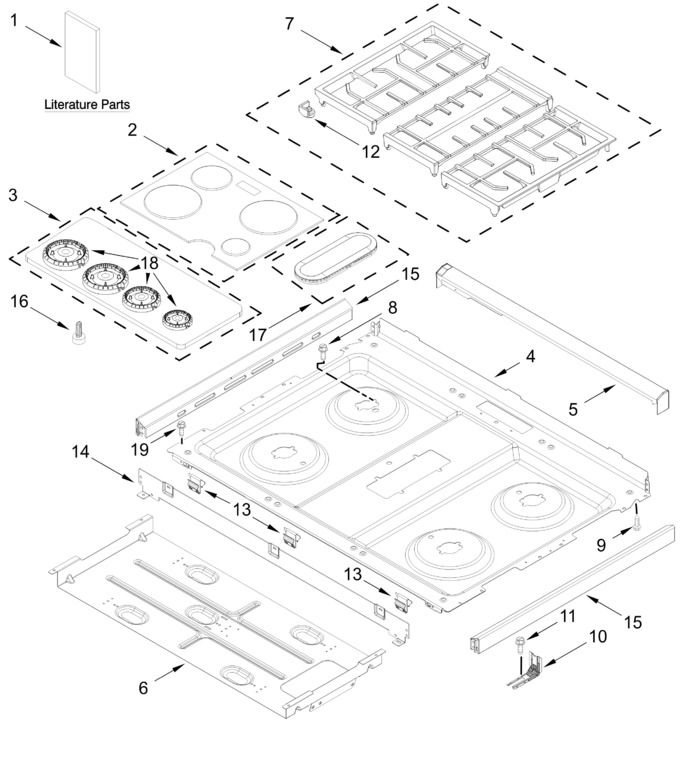

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | ARI4741983F61CAC445F12C0C1FD1B613C1 | Literature Parts |
|
- | |||||
| 2 | W11834859 | Burner Cap Kit (black) (Replaces: W11352138) |
|
- | |||||
| 3 | W11671543 | Surface, Burner Kit (Replaces: W11600788) |
|
$ 129.17 | |||||
| 4 | W11770826 | Cooktop (black) (Replaces: W11702201) |
|
$ 320.79 | |||||
| 5 | W11747659 | Vent, Trim (Replaces: W11632438) |
|
$ 202.83 | |||||
| 6 | W11758685 | Box, Burner (Replaces: W11388381) |
|
$ 341.19 | |||||
| 7 | W11771184 | Grate, Kit (black) (Replaces: W11720128) |
|
$ 464.47 | |||||
| 8 | W11241230 | Screw (Replaces: W10673618) |
|
Immediately | $ 14.73 | ||||
| 9 | W10530626 | Screw |
|
$ 16.76 | |||||
| 10 | W11502257 | Bracket, Anti-tip (Replaces: W11379947) |
|
Immediately | $ 23.03 | ||||
| 11 | 7101P48560 | Screw, Anti-tip Kit |
|
- | |||||
| 12 | W11773161 | Grate, Bumper (Replaces: W11726462) |
|
- | |||||
| 13 | W11728827 | Spring, Clip (Replaces: W11637551) |
|
- | |||||
| 14 | W11750421 | Cooktop, Front Bracket (Replaces: W11736687) |
|
- | |||||
| 15 | W11729931 | Cooktop, Frame Bracket (black) (Replaces: W11367962) |
|
$ 171.56 | |||||
| 16 | 8016P02260 | Glide, Main Top |
|
- | |||||
| 17 | W11729926 | Oval Spreader Flame, Assembly (Replaces: W11635774) |
|
$ 180.88 | |||||
| 18 | W11531096 | Flame Spreader (Replaces: W11352193) |
|
$ 81.92 | |||||
| 19 | 3196172 | Screw |
|
Immediately | $ 13.47 | ||||
| 16515 | Clip, Harness (Replaces: 313438) |
|
$ 20.53 | ||||||
| W11770982 | Harness, Main (Replaces: W11669851) |
|
- | ||||||
| 3400964 | Clip, Wire (Replaces: 3196520) |
|
$ 89.00 | ||||||
| ARI68146C2FADA8E1AE3122F181AC9275E2 | (left Front, Right Front) |
|
- | ||||||
| ARI283693F3486669333C7F1EE938CD8A5B | (right Rear) |
|
- | ||||||
| ARIF7E7CB4EEF4E7DE47369C6A29EE1E0F9 | (left Rear) |
|
- | ||||||
| ARI7C4B781E09F4C135E8A56A812FBF5A4D | Following Parts Not Illustrated |
|
- | ||||||
| W11729546 | Tech Sheet |
|
- | ||||||
| W11702314 | Quick Start Guide |
|
- | ||||||
| W11702308 | Owner's Manual |
|
- | ||||||
| W11747426 | Harness, Dc (Replaces: W11349007) |
|
$ 167.53 | ||||||
| W11730272 | Harness, Bake (Replaces: W11454086) |
|
Immediately | $ 59.10 | |||||
| ARI7A67B14AEA62F6D2A04BCF7D52CA12EE | (center) |
|
- | ||||||
| W11531098 | Flame Spreader (Replaces: W11352197) |
|
$ 80.72 | ||||||
| W11531097 | Flame Spreader (Replaces: W11352195) |
|
$ 81.15 | ||||||
| 3196896 | Clip, Wire |
|
- |
