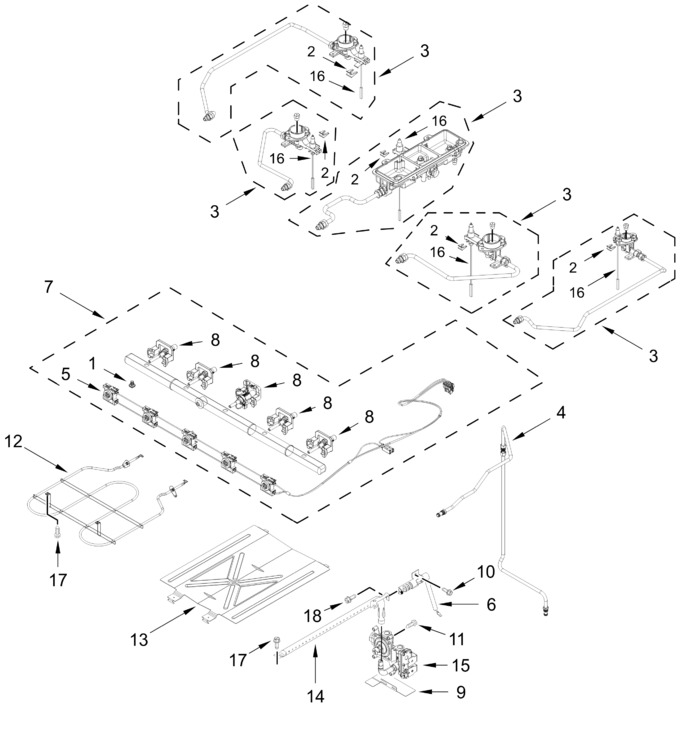

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11727164 | Screw (Replaces: W11402213) |
|
- | |||||
| 2 | W11684564 | Electrode, Spring (Replaces: W10827923) |
|
Immediately | $ 12.65 | ||||
| 3 | W11771048 | Orifice Assembly (18k) (Replaces: W11663422) |
|
Immediately | $ 92.41 | ||||
| 4 | W11771052 | Tubing (manifold To Regulator) (Replaces: W11665012) |
|
- | |||||
| 5 | W11771007 | Harness, Igniter (includes Switches) (Replaces: W11723597) |
|
- | |||||
| 6 | W11524031 | Electrode, Bake (Replaces: W11450459) |
|
Immediately | $ 56.90 | ||||
| 7 | W11784067 | Manifold Assembly (Replaces: W11663919) |
|
$ 263.87 | |||||
| 8 | W11773163 | Valve, Single (Replaces: W11714958) |
|
- | |||||
| 9 | W10224921 | Bracket, Aegis |
|
- | |||||
| 10 | W11684507 | Screw (Replaces: 3196385) |
|
$ 14.27 | |||||
| 11 | WP3400016 | Screw (Replaces: 3400016) |
|
$ 8.39 | |||||
| 12 | W11847084 | Element, Broiler (Replaces: W10714060) |
|
$ 117.89 | |||||
| 13 | WPW10184491 | Spreader, Flame (oven) (Replaces: W10184491) |
|
$ 253.52 | |||||
| 14 | WP9758078 | Burner, Bake (Replaces: 9758078) |
|
$ 226.07 | |||||
| 15 | W10898290 | Regulator (Replaces: W10818355) |
|
$ 393.66 | |||||
| 16 | W11773179 | Electrode (Replaces: W11735473) |
|
$ 35.81 | |||||
| 17 | W11233072 | Screw (Replaces: W10362924) |
|
Immediately | $ 14.72 | ||||
| 18 | 3196265 | Screw |
|
- | |||||
| W11453940 | Electrode (Replaces: W11428831) |
|
$ 64.46 | ||||||
| W11714959 | Valve, Single |
|
- | ||||||
| ARI283693F3486669333C7F1EE938CD8A5B | (right Rear) |
|
- | ||||||
| ARIA12C7E5D311C54B1AACBC1820DF34957 | (right Front) |
|
- | ||||||
| W11771049 | Orifice Assembly (18k) (Replaces: W11300881) |
|
- | ||||||
| W11771046 | Orifice Assembly (10k) (Replaces: W11300880) |
|
- | ||||||
| W11771045 | Orifice Assembly (5k) (Replaces: W11300878) |
|
- | ||||||
| W11745758 | Electrode (Replaces: W11581944) |
|
- | ||||||
| ARI7A67B14AEA62F6D2A04BCF7D52CA12EE | (center) |
|
- | ||||||
| ARI5AD74B3C8D449725567FBC40A122921E | (right Front, Right Rear) |
|
- | ||||||
| WPW10182767 | Tie, Wire (Replaces: W11402210) |
|
$ 7.30 | ||||||
| W11763416 | Orifice, Lp Bake (Replaces: W10838304) |
|
$ 52.11 | ||||||
| W11784068 | Orifice Assembly (12k) (Replaces: W11663427) |
|
- | ||||||
| ARI68146C2FADA8E1AE3122F181AC9275E2 | (left Front, Right Front) |
|
- | ||||||
| W11784063 | Lp Conversion Kit (Replaces: W11368260) |
|
- | ||||||
| ARI7C4B781E09F4C135E8A56A812FBF5A4D | Following Parts Not Illustrated |
|
- | ||||||
| ARI76BF577D359F4F7B6AC1C45BB9FB0006 | (left Front) |
|
- | ||||||
| W11773180 | Electrode (Replaces: W11735471) |
|
$ 35.81 | ||||||
| W11773166 | Valve, Single (Replaces: W11714960) |
|
- | ||||||
| ARIF7E7CB4EEF4E7DE47369C6A29EE1E0F9 | (left Rear) |
|
- | ||||||
| W11773165 | Valve, Single (Replaces: W11714953) |
|
- |
