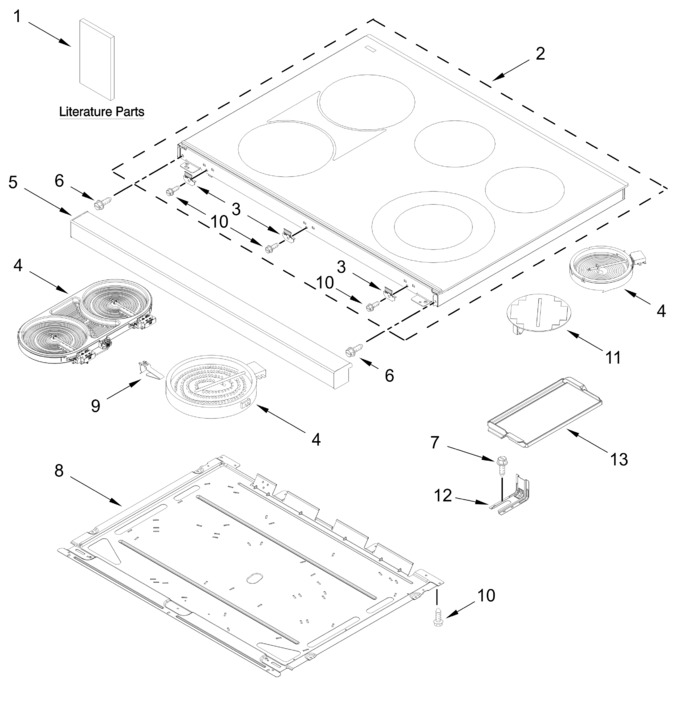

| 1 | ARI4741983F61CAC445F12C0C1FD1B613C1 | Literature Parts |
|
- | |||||
| 2 | W11730432 | Cooktop (black, Includes Cooktop Bracket) (Replaces: W11633168) |
|
$ 562.61 | |||||
| 3 | W11730543 | Bracket, Cooktop (Replaces: W11593284) |
|
Immediately | $ 11.52 | ||||
| 4 | WPW10248259 | Element, Bridge (Replaces: W10248259) |
|
$ 374.15 | |||||
| 5 | W11729962 | Bullnose (stainless) (Replaces: W11624928) |
|
Immediately | $ 393.00 | ||||
| 6 | W11684512 | Screw (Replaces: 3400080) |
|
$ 14.81 | |||||
| 7 | 7101P48560 | Screw, Anti-tip Kit |
|
- | |||||
| 8 | W11728329 | Pan, Radiant Element (Replaces: W11640572) |
|
Immediately | $ 143.49 | ||||
| 9 | W11663556 | Spring, Element (Replaces: W11600012) |
|
Immediately | $ 14.84 | ||||
| 10 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.95 | ||||
| 11 | W11706247 | Element, Warm Zone (Replaces: W11668631) |
|
Immediately | $ 133.94 | ||||
| 12 | W11839019 | Bracket, Anti-tip (Replaces: W11379945) |
|
Immediately | $ 28.54 | ||||
| 13 | W11730472 | Griddle (Replaces: W11601635) |
|
$ 224.30 | |||||
| W11171119 | Element (1200w) (Replaces: 8273994) |
|
Immediately | $ 182.23 | |||||
| W11781589 | Harness, Cooktop (Replaces: W11671012) |
|
- | ||||||
| ARIA12C7E5D311C54B1AACBC1820DF34957 | (right Front) |
|
- | ||||||
| ARI9E076A4EB9AA7BF3DBA6ED9D0C1B5D12 | (center Rear) |
|
- | ||||||
| W11729952 | Harness, Hidden Bake (Replaces: W11585874) |
|
$ 61.80 | ||||||
| ARI5A21FEE31EB202DDA189D0EC8CA36187 | (left Front, Left Rear) |
|
- | ||||||
| W11781591 | Harness, Main (Replaces: W11670820) |
|
- | ||||||
| W11729545 | Tech Sheet |
|
- | ||||||
| W11781582 | Harness, Wire (Replaces: W11385156) |
|
- | ||||||
| W11517959 | Element, Dual (3000w) (Replaces: W11282542) |
|
Immediately | $ 134.44 | |||||
| W11638635 | Owners Manual |
|
- | ||||||
| W11638796 | Quick Start Guide |
|
- | ||||||
| ARI7C4B781E09F4C135E8A56A812FBF5A4D | Following Parts Not Illustrated |
|
- | ||||||
| ARI283693F3486669333C7F1EE938CD8A5B | (right Rear) |
|
- |
