SELECT A DIAGRAM

Chassis Parts


Control Panel Parts


Cooktop Parts


Door Parts


Drawer Parts


Optional Parts (not Included)

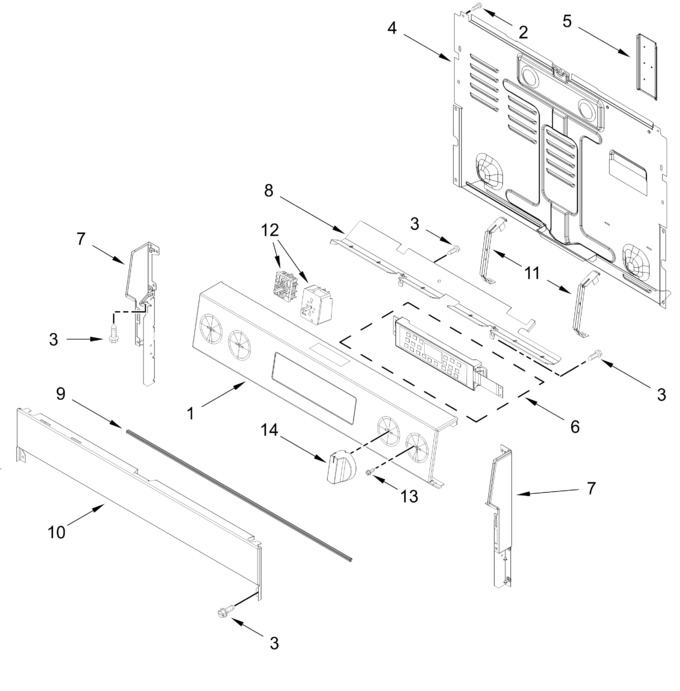

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11781587		Console (stainless)   (Replaces: W11625395)		Appelez-nous	-
2	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 14.72
3	WP3196557		Screw   (Replaces: 3196169)			Immediately	$ 7.95
4	W11729935		Cover, Upper Rear   (Replaces: W11392241)			Immediately	$ 132.02
5	W11747327		Cover, Rear Flue   (Replaces: W11736681)		Appelez-nous	-
6	W11812069		Assembly, User Interface   (Replaces: W11688267)				$ 465.97
7	W11728387		Console, Endcap (stainless, Left)   (Replaces: W11625424)				$ 116.19
8	W11747326		Shield, Heat   (Replaces: W11736649)		Appelez-nous	-
9	W11728258		Gasket, Lower Panel   (Replaces: W11643797)				$ 58.00
10	W11729961		Panel, Lower (stainless)   (Replaces: W11625404)				$ 218.80
11	W11728256		Bracket, Control   (Replaces: W11371599)		Appelez-nous	-
12	W10857622		Switch, Infinite   (Replaces: W10437092)			Immediately	$ 211.69
13	WP3400882		Screw   (Replaces: 3400882)			Immediately	$ 7.55
14	W11728257		Knob (stainless)   (Replaces: W11584001)			Immediately	$ 42.37
	ARI68146C2FADA8E1AE3122F181AC9275E2		(left Front, Right Front)		Appelez-nous	-
	ARIF7E7CB4EEF4E7DE47369C6A29EE1E0F9		(left Rear)		Appelez-nous	-
	ARI283693F3486669333C7F1EE938CD8A5B		(right Rear)		Appelez-nous	-
	W11728386		Console, Endcap (stainless, Right)   (Replaces: W11625421)			Immediately	$ 116.19
	W10911303		Switch, Infinite   (Replaces: W10578768)			Immediately	$ 104.64
	W11661906		Switch, Infinite   (Replaces: W10843843)			Immediately	$ 19.59
