SELECT A DIAGRAM

01 - Bottom Hinges & Rollers


02 - Cabinet Back


03 - Condenser & Timer Box Assy


04 - Control, Hinges & Shields


05 - Crisper & Deli Frame Assy


06 - Door Assy


07 - Door Panels & Grille


08 - Evaporator Area


09 - Ice Maker Assy & Parts


10 - Machine Compartment


11 - Miscellaeous Information


12 - Shelf Ladders & Light Assy


13 - Shelving

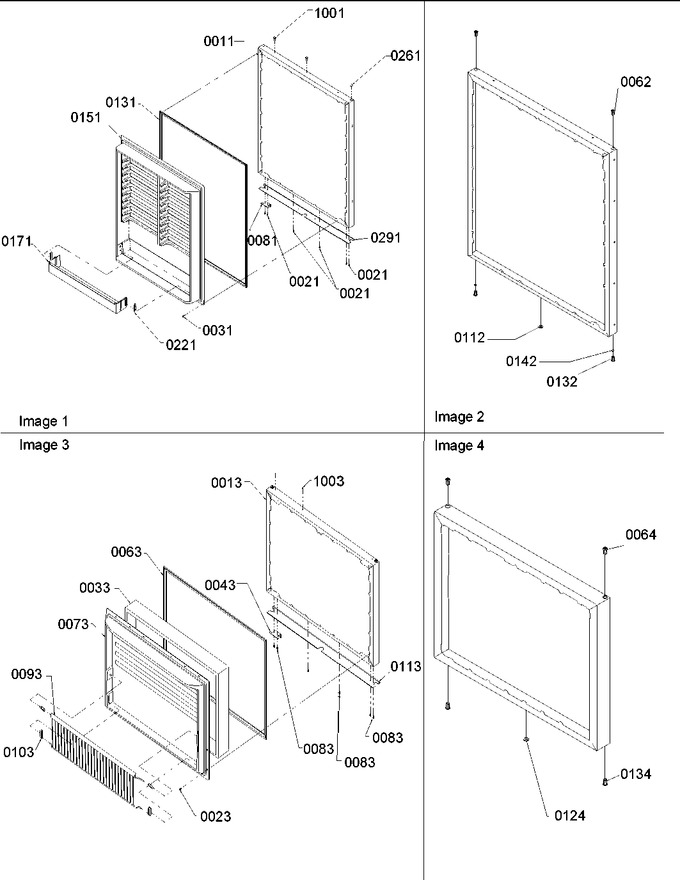

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	12082505E		Assy, Ref Door Foam (blk)		Appelez-nous	-
13	12081705E		Assy, Frz Dr Foam (blk)		Appelez-nous	-
21	WPW10348409		Screw, Mounting   (Replaces: M0211533)			Immediately	$ 7.76
23	M0219730		Screw				$ 7.65
43	12051009		Stop, Door (blk)		Appelez-nous	-
62	10961002		Bushing, Door (blk)		Appelez-nous	-
63	WP12550107Q		Gasket,fz Dr(black)   (Replaces: 10456851)				$ 300.29
64	C8964402		Bushing, Top		Appelez-nous	-
73	12031501		Liner, Frz Door		Appelez-nous	-
81	W11708403		Stop, Door (blk)   (Replaces: 12051012)			Immediately	$ 14.05
83	WPW10348409		Screw, Mounting   (Replaces: M0211533)			Immediately	$ 7.76
93	12051601		Retainer, Package		Appelez-nous	-
100	WP12246608		Plug, Top Hinge Button (blk)   (Replaces: M0310731)			Immediately	$ 7.76
103	12051501		Glide, Frz Dr Rack		Appelez-nous	-
112	M0310336		Plug, Button (blk)		Appelez-nous	-
113	12521101B		Trim, Horiz Btm (black)		Appelez-nous	-
124	M0310336		Plug, Button (blk)		Appelez-nous	-
131	10456850		Gasket,ref Dr(black)		Appelez-nous	-
132	12028602		Bushing, Door (blk)		Appelez-nous	-
134	12050104		Closure, Door (blk)		Appelez-nous	-
142	10252903		Filter, Bushing		Appelez-nous	-
151	12031401		Liner, Ref Door		Appelez-nous	-
171	10609805		Retainer, Ref Door		Appelez-nous	-
221	10202001		Clip, Retainer		Appelez-nous	-
291	12521101B		Trim, Horiz Btm (black)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
