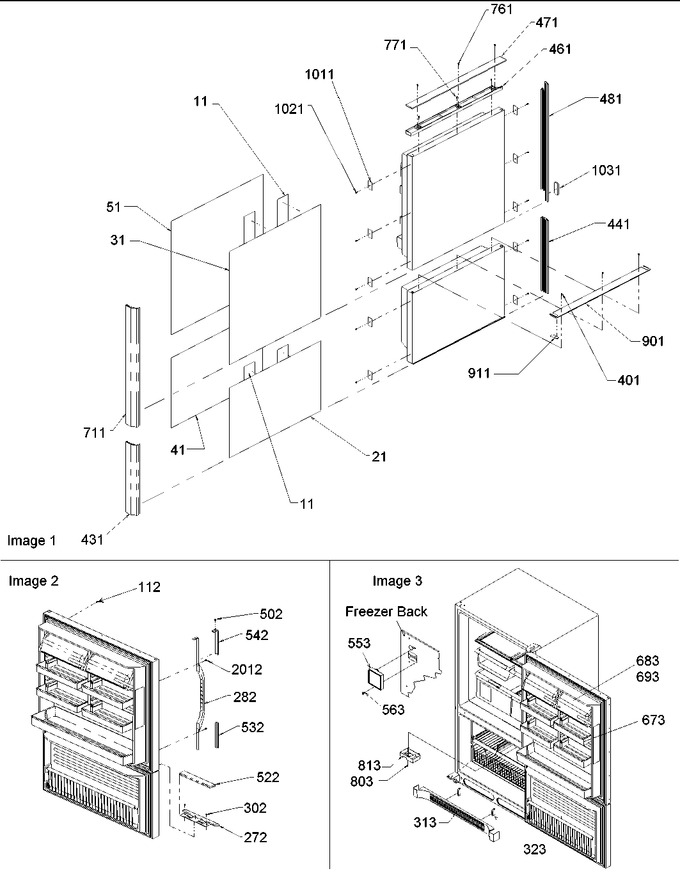

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	R0195044		Tape, Adhesive 9 Ft Roll		Appelez-nous	-
21	12231928		Panel, Fz Dr (ss)		Appelez-nous	-
31	12231927		Panel, Ref Dr(ss)		Appelez-nous	-
41	12269211		Spacer,fz Panel(btm Mnt)		Appelez-nous	-
51	12269210		Spacer,ref Dr Panel(bm)		Appelez-nous	-
101	12315101		Clip		Appelez-nous	-
102	WP489399		Screw, Se   (Replaces: M0232929)				$ 6.95
201	R9800670		Screw, Mounting   (Replaces: M0223230)				$ 9.38
313	12045103		Grille, Toe (blk)		Appelez-nous	-
323	10551502		Clip, Toe Grille				$ 5.84
401	W11245710		Screw, Sm (stnls)   (Replaces: M0229518)			Immediately	$ 14.05
431	12500602S1		Handle,fz Dr(stn Stl)		Appelez-nous	-
441	12500504S1		Trim,vert Fz(stn Stl)		Appelez-nous	-
461	12059103		Extension, Ref Dr (blk)		Appelez-nous	-
471	12521102S		Trim, S Horiz Ref Top		Appelez-nous	-
481	12500503S1		Trim,rh Vert Ref(stn Stl)		Appelez-nous	-
553	D7874403		Cover-fl Tb/plug		Appelez-nous	-
563	67006425		Screw, Sm   (Replaces: M0238616)			Immediately	$ 6.95
673	10420007		Shelf, Ref Door		Appelez-nous	-
683	12163303		Door, Dairy		Appelez-nous	-
693	12163202		Shelf, Dairy		Appelez-nous	-
711	12500601S1		Handle Ref/(stn Stl)		Appelez-nous	-
761	M0213815		Screw		Appelez-nous	-
771	WP489474		Screw 1``   (Replaces: M0211021)			Immediately	$ 7.97
803	M0216531		Screw		Appelez-nous	-
813	D7878825		Cover, Frz Cont		Appelez-nous	-
901	12521103S		Trim, S Horiz Frz Top		Appelez-nous	-
911	12468701		Plug, Trim (ss)		Appelez-nous	-
NI	12500502S1		Trim,lh Vert Ref(stn Stl)		Appelez-nous	-
