SELECT A DIAGRAM

01 - Bottom Hinges & Rollers


02 - Cabinet Back


03 - Condenser & Timer Box Assy


04 - Control, Hinges & Shields


05 - Crisper & Deli Frame Assy


06 - Door Assy


07 - Door Panels & Grille


08 - Evaporator Area


09 - Ice Maker Assy & Parts


10 - Machine Compartment


11 - Miscellaeous Information

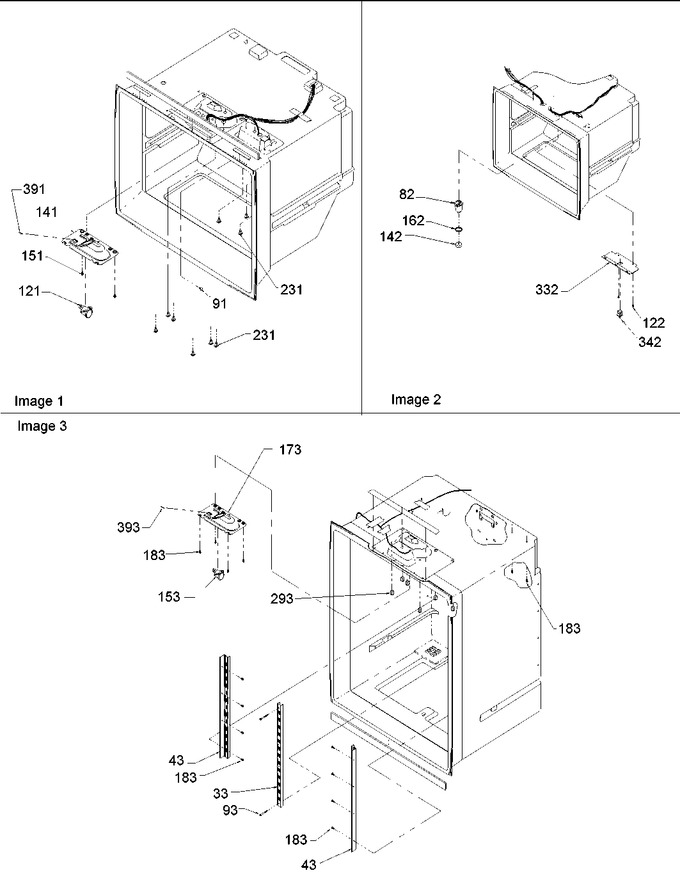

12 - Shelf Ladders & Light Assy


13 - Shelving


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
33	12435801		Ladder, Center		Appelez-nous	-
43	12435701		Ladder, Side (l/r)		Appelez-nous	-
82	W10815413		Funnel, Drain   (Replaces: D7753903)			Immediately	$ 49.05
91	12991101		Screw, Sm   (Replaces: M0210816)				$ 12.83
93	M0231426		Screw		Appelez-nous	-
121	D7714408		Socket, Light				$ 68.10
122	67006425		Screw, Sm   (Replaces: M0238616)			Immediately	$ 6.95
141	12427502		Housing, Light		Appelez-nous	-
142	WPB8381501		Gasket, Drain Tube   (Replaces: B8381501)				$ 7.41
151	67006425		Screw, Sm   (Replaces: M0238642)			Immediately	$ 6.95
153	D7714408		Socket, Light				$ 68.10
162	WPM0500703		Seal, O Ring   (Replaces: M0500703)				$ 10.92
173	12427502		Housing, Light		Appelez-nous	-
183	67006425		Screw, Sm   (Replaces: M0238642)			Immediately	$ 6.95
231	M0581001		Grommet, Screw		Appelez-nous	-
293	M0581001		Grommet, Screw		Appelez-nous	-
332	12056101		Cover, Frz Light Sw		Appelez-nous	-
342	W11384469		Switch, Light   (Replaces: C3680310)			Immediately	$ 37.23
391	B5733302		Clip, Ground		Appelez-nous	-
393	B5733302		Clip, Ground		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
