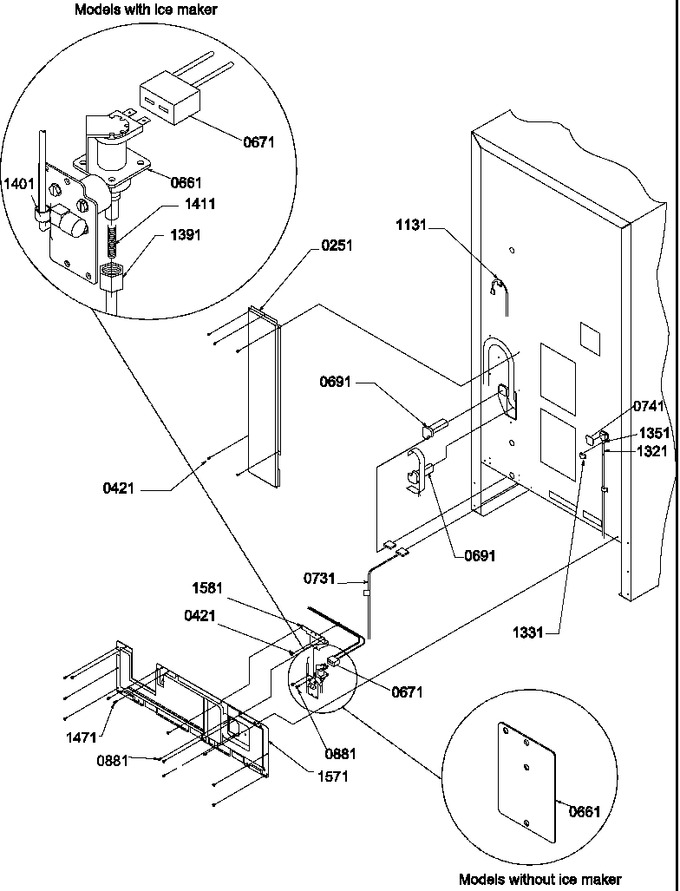

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 251 | 12050903 | Cover, Ht Exch |
|
- | |||||
| 421 | M0227217 | Screw, Sm |
|
- | |||||
| 661 | W10833899 | Kit, Water Valve (Replaces: 10524606) |
|
Immediately | $ 241.48 | ||||
| 671 | 12097203 | Harness, Control |
|
- | |||||
| 691 | 12060601 | Plug, Tunnel |
|
- | |||||
| 731 | 12086301 | Cord, Power |
|
- | |||||
| 881 | 67006425 | Screw-sm No.8-1/2lg (Replaces: M0211017) |
|
Immediately | $ 6.95 | ||||
| 1131 | M0104105 | Clip, Cord |
|
- | |||||
| 1321 | B5705325 | Tubing, Plastic |
|
- | |||||
| 1331 | WPM0114003 | Clip, Speed (Replaces: M0114003) |
|
$ 11.05 | |||||
| 1351 | WPA3223101 | Insert, Plastic Tube (Replaces: A3223101) |
|
Immediately | $ 7.82 | ||||
| 1391 | WP627018 | Nut, Sleeve (Replaces: M0753001) |
|
$ 10.97 | |||||
| 1401 | W10833902 | Clamp, Tube (Replaces: M0108105) |
|
$ 10.99 | |||||
| 1411 | A1055101 | Spring, Antikink |
|
- | |||||
| 1471 | M0219704 | Screw |
|
- | |||||
| 1571 | 12180001 | Assy, Mc Back |
|
- | |||||
| 1581 | 12088401 | Bracket, Water Valve Mtg |
|
- |
