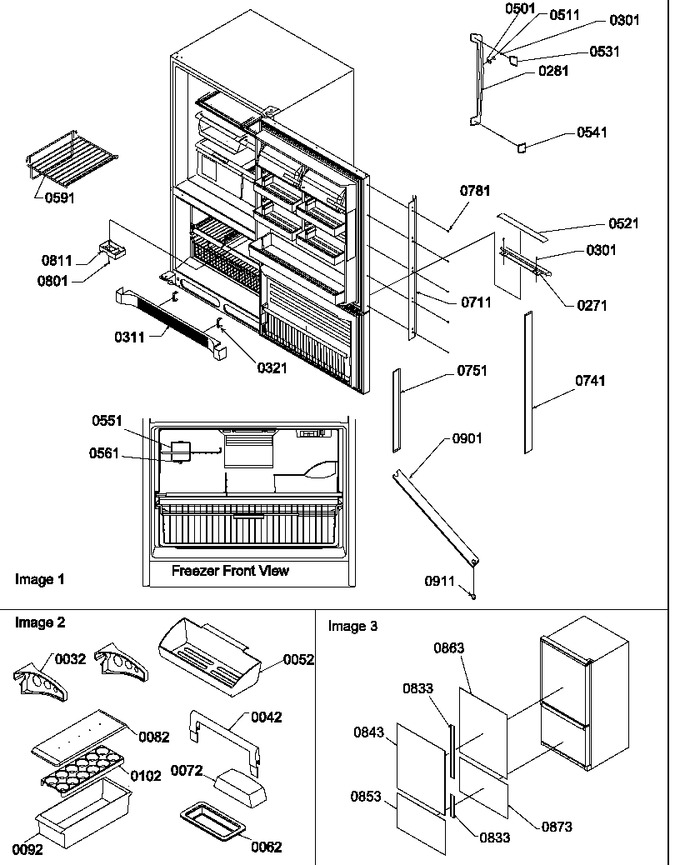

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 32 | 12103903 | Snugger, Dr Shlf |
|
- | |||||
| 42 | 10468002 | Retainer-tall Pkg |
|
- | |||||
| 52 | 12045801 | Tray, Crisper |
|
- | |||||
| 62 | 12304601 | Dish, Butter |
|
- | |||||
| 72 | 12070901 | Cover-butter |
|
- | |||||
| 82 | 10436404 | Lid, Utility |
|
$ 60.85 | |||||
| 92 | 10423128 | Bin-utility |
|
- | |||||
| 102 | 10436505 | Tray, Egg |
|
- | |||||
| 301 | WPW10348409 | Screw, Mounting (Replaces: M0211533) |
|
Immediately | $ 8.20 | ||||
| 311 | 12045103 | Grille, Toe (blk) |
|
- | |||||
| 321 | 10551502 | Clip, Toe Grille |
|
$ 5.84 | |||||
| 561 | 67006425 | Screw, Sm (Replaces: M0238616) |
|
Immediately | $ 7.30 | ||||
| 711 | 12080912 | Handle, Refr Door (e) |
|
- | |||||
| 741 | 12085104 | Assy, Vt Trim Ref (black) |
|
- | |||||
| 751 | 12085108 | Assy, Vt Trim Frz (black) |
|
- | |||||
| 781 | M0213529 | Screw |
|
- | |||||
| 801 | M0216531 | Screw |
|
- | |||||
| 811 | D7878816 | Cover, Frz Control |
|
- | |||||
| 833 | R0195044 | Tape, Adhesive 9 Ft Roll |
|
- | |||||
| 901 | 12085204 | Assy, Horiz Top Trim (black) |
|
- | |||||
| 911 | 12098904 | Plug, Trim (blk) |
|
- |
