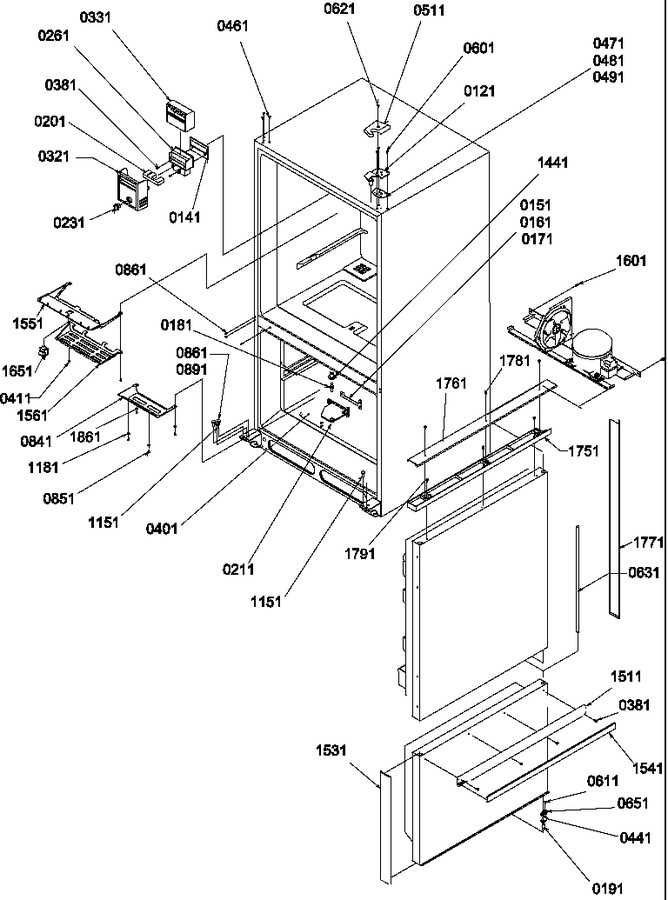

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 121 | 12077308 | Hinge, Rh Top-e Ct |
|
- | |||||
| 141 | B8345401 | Gasket, Damper |
|
- | |||||
| 151 | 10562204 | Kit, Ctr Hinge Shim |
|
- | |||||
| 161 | 10562205 | Shim, Ctr. Hinge |
|
- | |||||
| 171 | 10562206 | Shim, Ctr. Hinge |
|
- | |||||
| 181 | 10351002 | Pin, Hinge (ctr) |
|
- | |||||
| 191 | 10561602 | Pin, Door Hinge |
|
- | |||||
| 201 | C8902601 | Insert, Control |
|
- | |||||
| 211 | 12050601 | Hinge-bright Ctr |
|
- | |||||
| 231 | D7795830 | Knob-per Control |
|
- | |||||
| 261 | D7547409 | Control-damper |
|
- | |||||
| 321 | 12045401 | Cover-ref Cont |
|
- | |||||
| 331 | 12060101 | Insul, Damper |
|
- | |||||
| 381 | WP98165 | Screw, Sm (Replaces: M0211018) |
|
$ 8.57 | |||||
| 401 | W11573362 | Screw, T. F. (Replaces: M0226233) |
|
$ 14.72 | |||||
| 411 | 67006425 | Screw, Sm (Replaces: M0238616) |
|
Immediately | $ 7.30 | ||||
| 461 | M0310716 | Plug |
|
- | |||||
| 471 | 10448501 | Shim, Top Hinge |
|
- | |||||
| 481 | 10448502 | Shim, Top Hinge |
|
- | |||||
| 491 | 10448503 | Shim, Top Hinge |
|
- | |||||
| 511 | 12072104 | Cover-l Hinge R |
|
- | |||||
| 601 | R9800670 | Screw, Tf (Replaces: M0238731) |
|
$ 10.58 | |||||
| 611 | W11227370 | Screw, Lock Brake Mounting (Replaces: M0220418) |
|
Immediately | $ 14.91 | ||||
| 621 | M0202325 | Screw |
|
- | |||||
| 631 | 10391302 | Support, Pin |
|
- | |||||
| 651 | 12113301 | Closure, Door (wht) |
|
- | |||||
| 841 | 10493302 | Cover, Frz Light |
|
- | |||||
| 851 | M0238846 | Screw-sm |
|
- | |||||
| 861 | M0310730 | Plug Button (almond) |
|
- | |||||
| 1151 | M0311702 | Plug, Button (l) |
|
- | |||||
| 1181 | M0270538 | Washer |
|
- | |||||
| 1441 | 12028501 | Closure, Door (wht) |
|
$ 6.67 | |||||
| 1511 | 12081603 | Handle, Frz Door (almond) |
|
- | |||||
| 1531 | 12085123 | Assy, Vt Trim Frz (almond) |
|
- | |||||
| 1541 | 12078403 | Insert, Frz Hndl (almond) |
|
- | |||||
| 1551 | 12056201 | Shield, Ref Light Sw |
|
- | |||||
| 1561 | 12056301 | Cover, Ref Light |
|
- | |||||
| 1601 | WP22002933 | Screw, Sm (Replaces: M0211357) |
|
$ 8.06 | |||||
| 1651 | W11384469 | Switch-nc Light (Replaces: C3680307) |
|
Immediately | $ 39.09 | ||||
| 1751 | 12059102 | Ext, Ref Door (almond) |
|
- | |||||
| 1761 | 12078803 | Trim, Horiz Top (almond) |
|
- | |||||
| 1771 | 12085131 | Assy, Vt Trim Ref (almond) |
|
- | |||||
| 1781 | M0213815 | Screw |
|
- | |||||
| 1791 | WP489474 | Screw 1`` (Replaces: M0211021) |
|
Immediately | $ 8.55 | ||||
| 1861 | M0270508 | Washer |
|
- |
