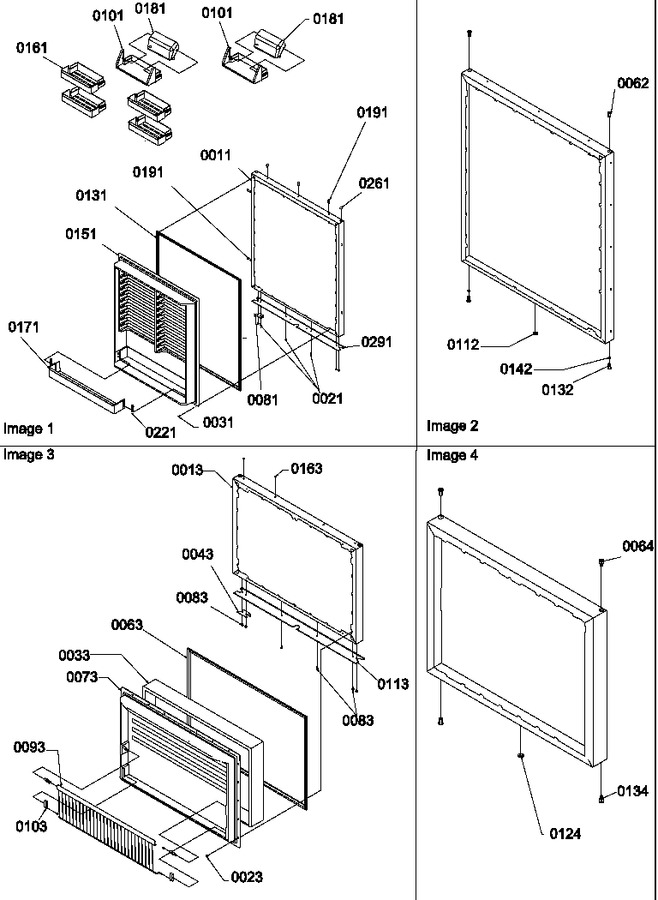

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	12082502L		Assy, Ref Door (almond)		Appelez-nous	-
13	12081702L		Assy, Frz Door (almond)		Appelez-nous	-
21	WPW10348409		Screw, Mounting   (Replaces: M0211533)			Immediately	$ 7.76
23	M0219730		Screw				$ 7.65
31	M0219730		Screw				$ 7.65
33	876370		Insulation, Batt   (Replaces: B0523561)				$ 231.56
43	12051008		Stop, Lwr Door (l)		Appelez-nous	-
63	10456827		Gasket-w Fz Dr		Appelez-nous	-
64	WP67004977		Bushing, Top   (Replaces: C8964401)				$ 7.81
64	10961001		Bushing, Door (wht)		Appelez-nous	-
73	12031501		Liner, Frz Door		Appelez-nous	-
81	12051011		Stop, Door		Appelez-nous	-
83	WPW10348409		Screw, Mounting   (Replaces: M0211533)			Immediately	$ 7.76
93	12051601		Retainer, Package		Appelez-nous	-
101	12163201		Shelf, Dairy		Appelez-nous	-
103	12051501		Glide, Frz Dr Rack		Appelez-nous	-
113	12079403		Trim, Hotiz Bot (almond)		Appelez-nous	-
124	M0310338		Plug Button Almond		Appelez-nous	-
131	10456826		Gasket,ref Dr(white)		Appelez-nous	-
132	12028601		Bushing, Door (wht)		Appelez-nous	-
134	12050103		Closure, Door (wht)		Appelez-nous	-
142	10252903		Filter, Bushing		Appelez-nous	-
151	12031401		Liner, Ref Door		Appelez-nous	-
161	10420005		Shelf, Ref Door		Appelez-nous	-
171	10609803		Retainer, Ref Door		Appelez-nous	-
181	12163301		Door, Dairy		Appelez-nous	-
221	10202001		Clip, Retainer		Appelez-nous	-
291	12079003		Trim, Horiz Bot (almond)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
