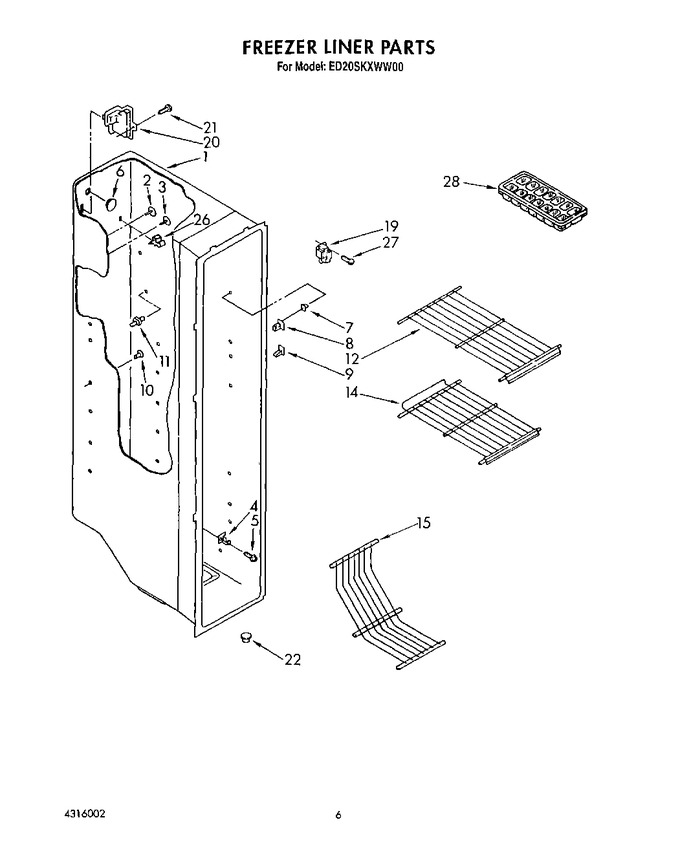

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Liner (not A Serviceable Part)		Appelez-nous	-
2	944795		Hole Plug		Appelez-nous	-
3	WP941839		Hole, Plug   (Replaces: 941839)				$ 8.03
4	1108436		Evaporator, Support		Appelez-nous	-
5	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 14.72
6	655411		Hole Plug		Appelez-nous	-
7	946355		Support, Stud (16)		Appelez-nous	-
8	946356		Stud (5)		Appelez-nous	-
9	1106982		Stud (5)		Appelez-nous	-
10	1110779		Grommet (16)		Appelez-nous	-
11	4388538		Stud (4)   (Replaces: 1110718)			Immediately	$ 32.85
12	1106979		Shelf		Appelez-nous	-
14	1106980		Shelf (2)		Appelez-nous	-
15	2148400		Trivet		Appelez-nous	-
19	942842		Terminal Block		Appelez-nous	-
20	1129915		Cover, Wiring		Appelez-nous	-
21	WP488729		Screw   (Replaces: 489176)			Immediately	$ 8.28
22	942768		Fitting, Drain		Appelez-nous	-
26	2215823		Clip, Air Duct (2)   (Replaces: 1114603)				$ 10.94
27	WP681414		Screw (repair)   (Replaces: 489254)			Immediately	$ 8.47
27	WP489478		Screw   (Replaces: 489242)				$ 8.18
28	WP841180A		Ice Tray (2)   (Replaces: 841180)			Immediately	$ 47.84
