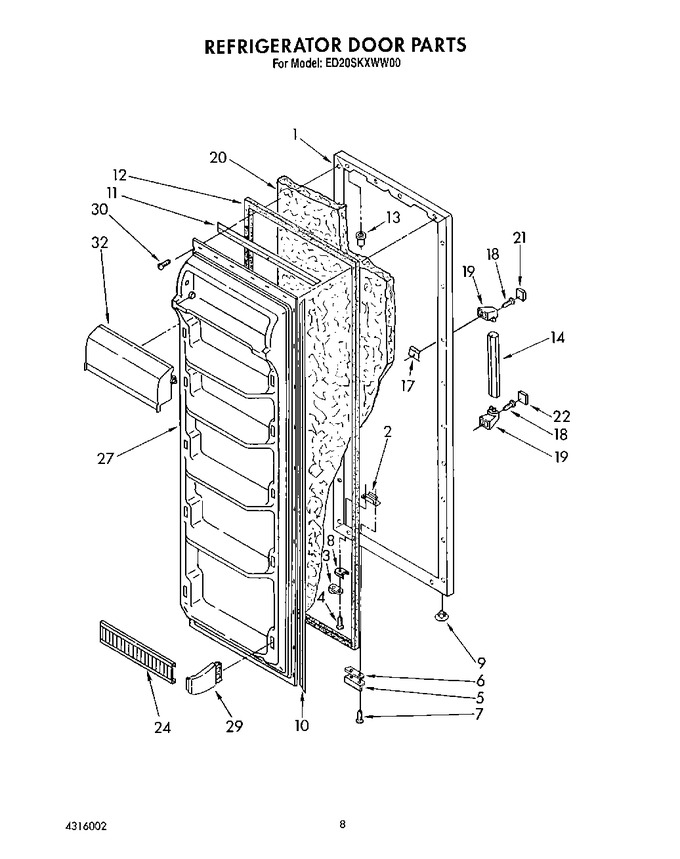

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2148286		Refrigerator Door (also Order Item 20)		Appelez-nous	-
2	988402		Tap Plate		Appelez-nous	-
3	4318165		Door Closer, Upper Cam   (Replaces: 1115905)			Immediately	$ 27.36
4	WP489069		Screw, 8 X 1/2   (Replaces: 488938)			Immediately	$ 7.86
5	1115906		Bracket, Door Stop		Appelez-nous	-
6	988421		Shim		Appelez-nous	-
7	488549		Screw, 8 X 5/8		Appelez-nous	-
8	WP1104787		Shim, Door Closer   (Replaces: 1104787)				$ 7.58
9	534927		Hole Plug		Appelez-nous	-
10	1117766		Gasket Retainer, Side (2)				$ 36.55
11	1118301		Gasket Retainer, Top & Bottom		Appelez-nous	-
12	2188404A		Door Gasket, Magnetic   (Replaces: 1129266)				$ 269.26
13	509929		Cap, Hinge Sleeve		Appelez-nous	-
14	1124592		Handle		Appelez-nous	-
17	WP939101		Screw, Anchor   (Replaces: 939101)				$ 7.50
18	488987		Screw, 8-15 X 1-5/8 (2)		Appelez-nous	-
19	1124591		End Cap (2)		Appelez-nous	-
20	876029		Foam Insulation (required When Replacing Exterior Door Panel)		Appelez-nous	-
21	2148292		Insert, Cover (top)		Appelez-nous	-
22	934724		Insert, Cover (bottom)		Appelez-nous	-
24	2148290		Trim, Door Shelf (5)		Appelez-nous	-
27	1129249		Panel, Interior Door		Appelez-nous	-
29	1110713		Retainer, Door Trim (10)				$ 5.84
30	WP489069		Screw, (30) 7 X 1/2   (Replaces: 489101)			Immediately	$ 7.86
32	2148289		Compartment Door		Appelez-nous	-
