SELECT A DIAGRAM

01 - Cover Sheet


02 - Cabinet/drum


03 - Front Panel/lint Filter


04 - Controls/top Panel


05 - Motor


06 - Burner

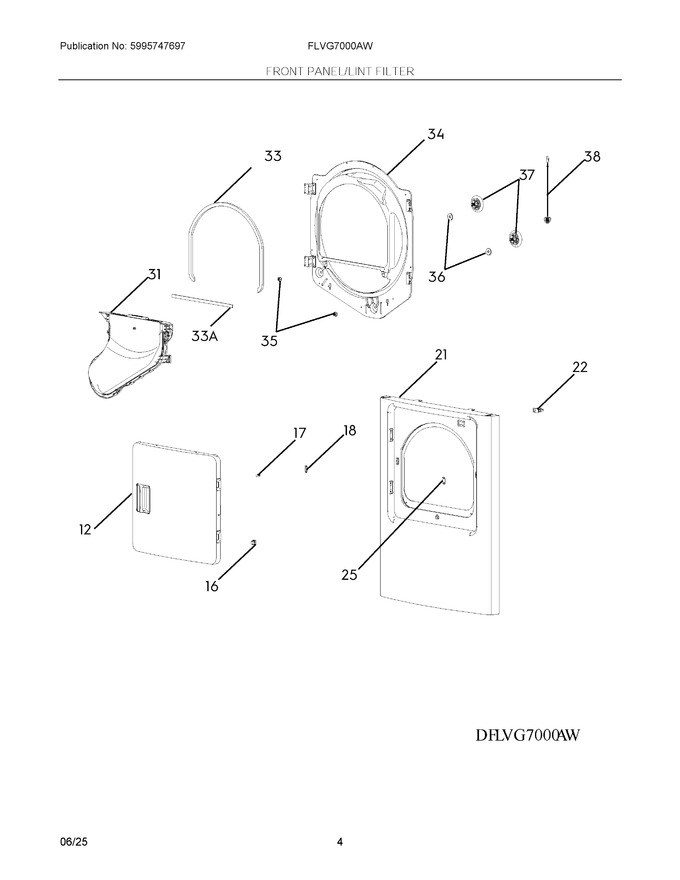

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
12	4056012430		Door, Outer, White				$ 140.24
16	5304511402		Catch, Door Latch				$ 31.37
17	5304511406		Pin, Door Catch				$ 21.69
18	5304511405		Cover, Front Panel				$ 10.85
21	4056012455		Front Panel, White				$ 128.90
22	5304511404		Switch, Door				$ 43.38
25	5304511407		Cover, Front Panel		Appelez-nous	-
31	5304538041		Flue Assembly, Air, Front				$ 101.48
33	5304538501		Gasket, Front Panel		Appelez-nous	-
34	5304538502		Support, Assembly, Front Panel		Appelez-nous	-
35	5304511425		Nut, Wheel				$ 12.44
36	5304511414		Washer, Flat Gasket, Wheel		Appelez-nous	-
37	4056012471		Wheel Assembly				$ 32.27
38	4056012489		Lamp		Appelez-nous	-
33A	5304511411		Gasket, Front Panel			Immediately	$ 14.46

    View Diagram in Separate Window       Print Part List
