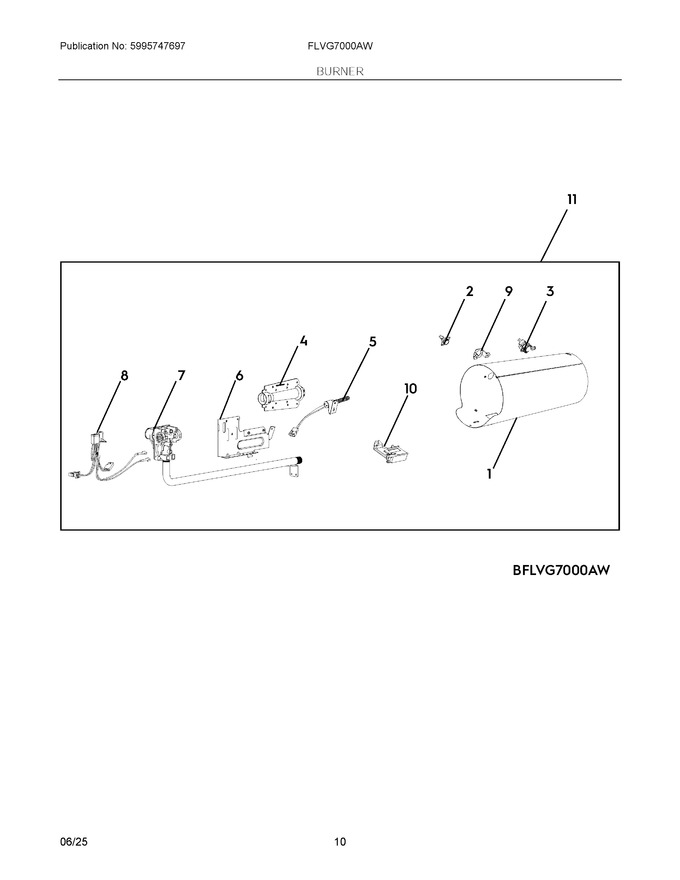

06 - Burner
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304538521 | Tube Combustion |
|
- | |||||
| 2 | 5304511444 | Thermostat |
|
$ 54.46 | |||||
| 3 | 5304538526 | Thermostat |
|
$ 26.54 | |||||
| 4 | 5304511445 | Burner, Gas |
|
- | |||||
| 5 | 5304511446 | Ignitor, Burner |
|
Immediately | $ 172.31 | ||||
| 6 | 5304511447 | Support, Burner |
|
- | |||||
| 7 | 5304511448 | Valve Assembly, Gas |
|
$ 773.95 | |||||
| 8 | 5304511449 | Harness, Wiring, Valve |
|
- | |||||
| 9 | 5304538524 | Support, Heater |
|
- | |||||
| 10 | 5304511450 | Sensor, Flame |
|
- | |||||
| 11 | 5304538525 | Heater, Assembly |
|
Immediately | $ 457.59 |
