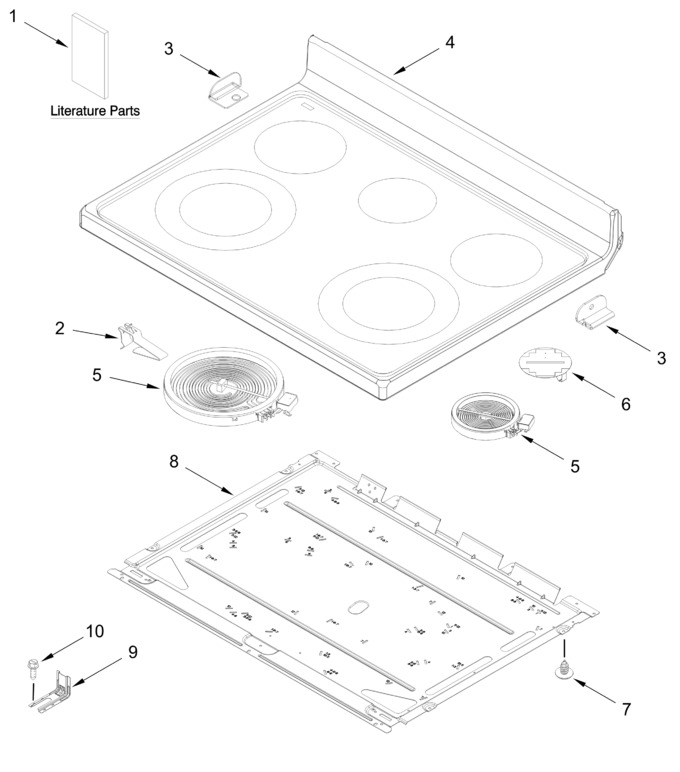

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	ARI4741983F61CAC445F12C0C1FD1B613C1		Literature Parts		Appelez-nous	-
2	W11663556		Spring, Element   (Replaces: W11600012)			Immediately	$ 14.84
3	W10607641		Bracket, Cooktop (left)				$ 33.52
4	W11719713		Cooktop (white)   (Replaces: W11629476)				$ 896.99
5	W11517959		Element, Dual (3000w)   (Replaces: W11282542)			Immediately	$ 134.44
6	W11706247		Element, Warm Zone   (Replaces: W11668631)			Immediately	$ 133.94
7	WP3196557		Screw   (Replaces: 3196169)			Immediately	$ 7.95
8	W11728329		Pan, Radiant Element   (Replaces: W11640572)			Immediately	$ 143.49
9	W11839019		Bracket, Anti-tip   (Replaces: W11379945)			Immediately	$ 28.54
10	7101P48560		Screw, Anti-tip Kit		Appelez-nous	-
	W11788989		Main, Harness   (Replaces: W11772315)		Appelez-nous	-
	W11777575		Tech Sheet		Appelez-nous	-
	3196896		Clip, Wire		Appelez-nous	-
	ARI1CEA8328406821DB8179A8C971BDB5B4		(left Rear, Right Rear)		Appelez-nous	-
	ARI331AC8E6A0B32951011383800D6FC3B6		(left Front, Right Front)		Appelez-nous	-
	ARI7C4B781E09F4C135E8A56A812FBF5A4D		Following Parts Not Illustrated		Appelez-nous	-
	W11598759		Harness, Warm Zone		Appelez-nous	-
	W11777909		Quick Start Guide		Appelez-nous	-
	W11777906		Owners Manual		Appelez-nous	-
	W11838447		Harness, Hidden Bake   (Replaces: W11172528)				$ 27.02
	W11825100		Harness, Cooktop (right)   (Replaces: W11134845)				$ 86.33
	W11675846		Harness, Cooktop (left)   (Replaces: W11134603)			Immediately	$ 39.67
	W10607642		Bracket, Cooktop (right)		Appelez-nous	-
	W11171119		Element (1200w)   (Replaces: W10248261)			Immediately	$ 182.23
	ARI7A67B14AEA62F6D2A04BCF7D52CA12EE		(center)		Appelez-nous	-
