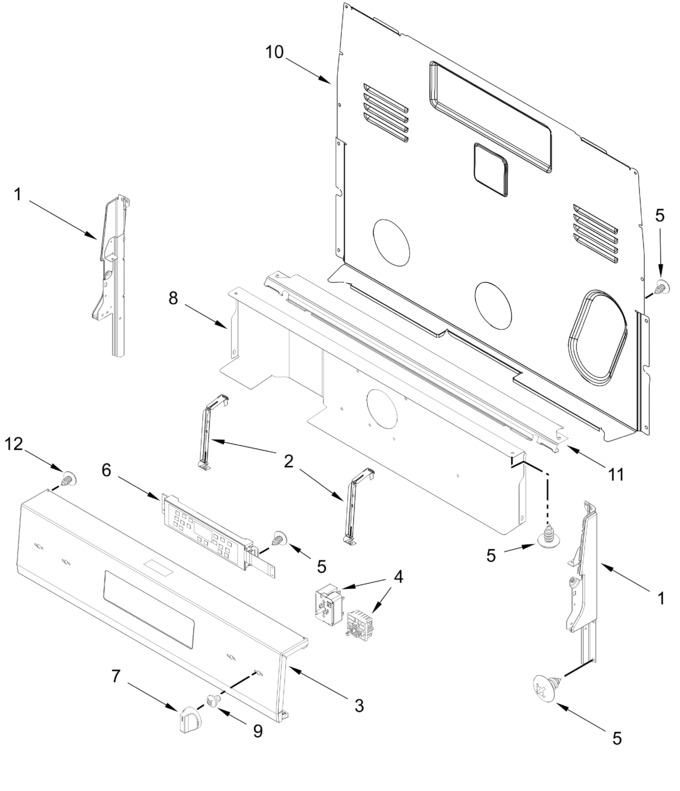

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11259041 | Console Endcap (white,left) (Replaces: W11213291) |
|
$ 104.70 | |||||
| 2 | W11713812 | Bracket, Control (Replaces: W11290750) |
|
$ 30.37 | |||||
| 3 | W11730523 | Console (white) (Replaces: W11299260) |
|
$ 180.63 | |||||
| 4 | W10857622 | Switch, Infinite (Replaces: W10437092) |
|
Immediately | $ 211.69 | ||||
| 5 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.72 | ||||
| 6 | W11788991 | User, Interface (Replaces: W11776485) |
|
Immediately | $ 419.29 | ||||
| 7 | W11707067 | Knob (white) (Replaces: W11331195) |
|
$ 22.98 | |||||
| 8 | W10134247 | Shield, Heat |
|
Immediately | $ 358.82 | ||||
| 9 | WP3400882 | Screw (Replaces: 3400882) |
|
Immediately | $ 7.55 | ||||
| 10 | WP8272473 | Cover, Upper Rear (Replaces: 8272473) |
|
$ 219.04 | |||||
| 11 | W10525121 | Bracket, Console Mounting |
|
$ 98.85 | |||||
| 12 | W11233072 | Screw (Replaces: W10362924) |
|
Immediately | $ 14.72 | ||||
| W10911303 | Switch, Infinite (Replaces: W10578768) |
|
Immediately | $ 104.64 | |||||
| ARI1CEA8328406821DB8179A8C971BDB5B4 | (left Rear, Right Rear) |
|
- | ||||||
| ARI331AC8E6A0B32951011383800D6FC3B6 | (left Front, Right Front) |
|
- | ||||||
| W11259700 | Console Endcap (white, Right) (Replaces: W11213293) |
|
$ 104.70 |
