Chassis Parts
Control Panel Parts
Cooktop Parts
Door Parts
Drawer Parts
Manifold Parts
Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:

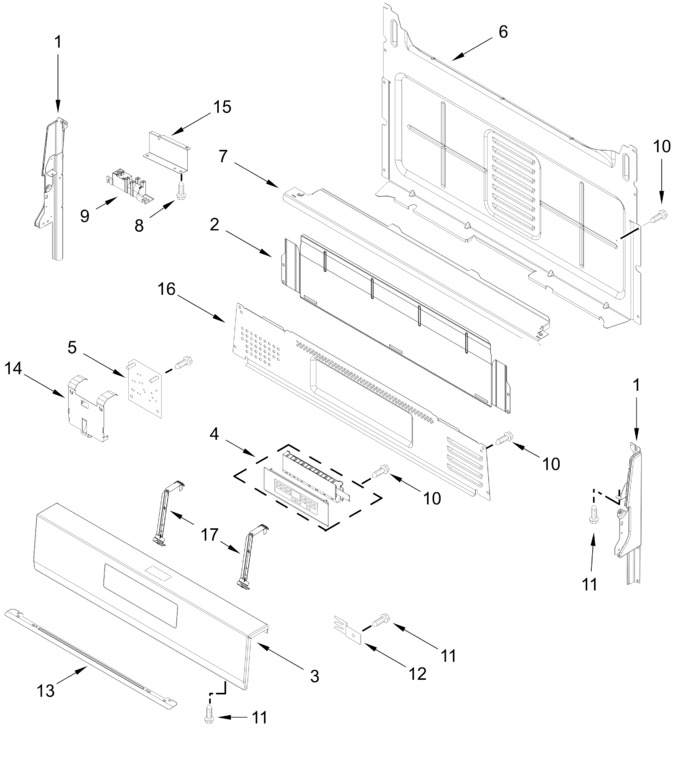

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11213290 | Console Endcap (black,left) |
|
$ 347.77 | |||||
| 2 | W10192841 | Shield, Heat |
|
$ 106.69 | |||||
| 3 | W11795500 | Console, Panel (black Stainless) (Replaces: W11779957) |
|
- | |||||
| 4 | W11795498 | Control, Electronic (black) (Replaces: W11776486) |
|
Immediately | $ 405.10 | ||||
| 5 | W10898291 | Module, Spark Dsi (Replaces: W10818365) |
|
Immediately | $ 365.64 | ||||
| 6 | W10184251 | Cover, Back |
|
- | |||||
| 7 | W10516123 | Bracket, Console Mounting |
|
- | |||||
| 8 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.95 | ||||
| 9 | W11703692 | Spark Module (Replaces: W11350452) |
|
Immediately | $ 96.65 | ||||
| 10 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.72 | ||||
| 11 | WP3196175 | Screw (Replaces: 3196165) |
|
Immediately | $ 7.55 | ||||
| 12 | 8523412 | Bracket, Rear Cooktop |
|
$ 167.90 | |||||
| 13 | W11443964 | Eye Brow, Bracket (black) |
|
$ 222.43 | |||||
| 14 | W10762981 | Bracket, Mounting |
|
$ 76.42 | |||||
| 15 | W10901176 | Bracket, Ignitor (Replaces: W10797001) |
|
- | |||||
| 16 | W10198745 | Cover, Upper |
|
$ 128.90 | |||||
| 17 | W11713812 | Bracket, Control (Replaces: W11290750) |
|
$ 30.37 | |||||
| W11213292 | Console Endcap (black, Right) |
|
$ 71.65 |
