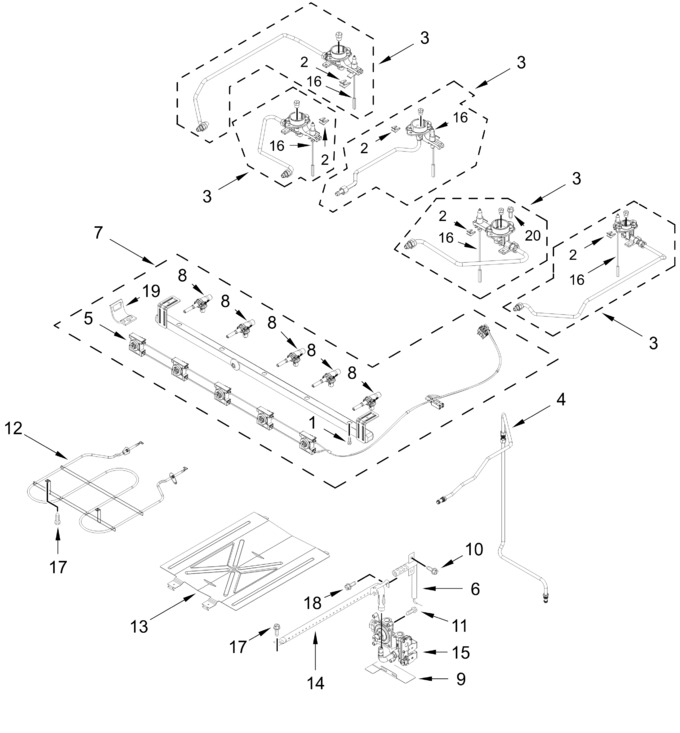

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11727164		Screw   (Replaces: W11402213)		Appelez-nous	-
2	W11684564		Electrode, Spring   (Replaces: W10827923)			Immediately	$ 12.65
3	W11562501		Orifice Holder Assembly (15k)   (Replaces: W11459257)				$ 104.50
4	W11680399		Tubing (manifold To Regulator)   (Replaces: W10215439)				$ 159.35
5	W11701336		Harness, Igniter (includes Switches)   (Replaces: W11537754)		Appelez-nous	-
6	W11524031		Electrode, Bake   (Replaces: W11450459)			Immediately	$ 56.90
7	W11510000		Manifold Assembly		Appelez-nous	-
8	W11759109		Valve, Gas   (Replaces: W11509685)		Appelez-nous	-
9	W10224921		Bracket, Aegis		Appelez-nous	-
10	W11684507		Screw   (Replaces: 3196385)				$ 14.27
11	WP3400016		Screw   (Replaces: 3400016)				$ 8.39
12	W11847084		Element, Broiler   (Replaces: W10714060)				$ 117.89
13	WPW10184491		Spreader, Flame (oven)   (Replaces: W10184491)				$ 253.52
14	WP9758078		Burner, Bake   (Replaces: 9758078)				$ 226.07
15	W11707169		Regulator   (Replaces: W11620067)		Appelez-nous	-
16	W11453940		Electrode   (Replaces: W11428831)				$ 64.46
17	W11233072		Screw   (Replaces: W10362924)			Immediately	$ 14.72
18	3196265		Screw		Appelez-nous	-
19	W10949105		Bracket, Saddle Valve				$ 22.75
20	W11577792		Screw, Valve		Appelez-nous	-
	ARI5AD74B3C8D449725567FBC40A122921E		(right Front, Right Rear)		Appelez-nous	-
	W11730274		Kit, Lp Conversion (orifice, Set Of 5)   (Replaces: W11368273)				$ 63.32
	ARI130620F5738F97FA53E648D69A4CE80B		(left Front, Left Rear)		Appelez-nous	-
	WPW10182767		Tie, Manifold Wire   (Replaces: W10182767)				$ 7.30
	ARI7C4B781E09F4C135E8A56A812FBF5A4D		Following Parts Not Illustrated		Appelez-nous	-
	W11509687		Valve,gas				$ 99.67
	W11509686		Valve, Gas		Appelez-nous	-
	ARI76BF577D359F4F7B6AC1C45BB9FB0006		(left Front)		Appelez-nous	-
	W11557818		Orifice Holder Assembly (8k)   (Replaces: W11459261)				$ 108.20
	W11557816		Orifice Holder Assembly (15k)   (Replaces: W11459260)				$ 107.93
	W11557815		Orifice Holder Assembly (9.5k)   (Replaces: W11459258)		Appelez-nous	-
	W11557817		Orifice Holder Assembly (5k)   (Replaces: W11459259)		Appelez-nous	-
	W11745758		Electrode   (Replaces: W11581944)		Appelez-nous	-
	ARIF7E7CB4EEF4E7DE47369C6A29EE1E0F9		(left Rear)		Appelez-nous	-
	ARI283693F3486669333C7F1EE938CD8A5B		(right Rear)		Appelez-nous	-
	W11453920		Electrode   (Replaces: W11428858)				$ 64.35
	ARIA12C7E5D311C54B1AACBC1820DF34957		(right Front)		Appelez-nous	-
	ARI7A67B14AEA62F6D2A04BCF7D52CA12EE		(center)		Appelez-nous	-
	ARI2D5FF3F1EB2A25A0FA9BB57CE3805494		(left Front, Right Front, Center)		Appelez-nous	-
	W11763416		Orifice, Lp Bake   (Replaces: W10838304)				$ 52.11
