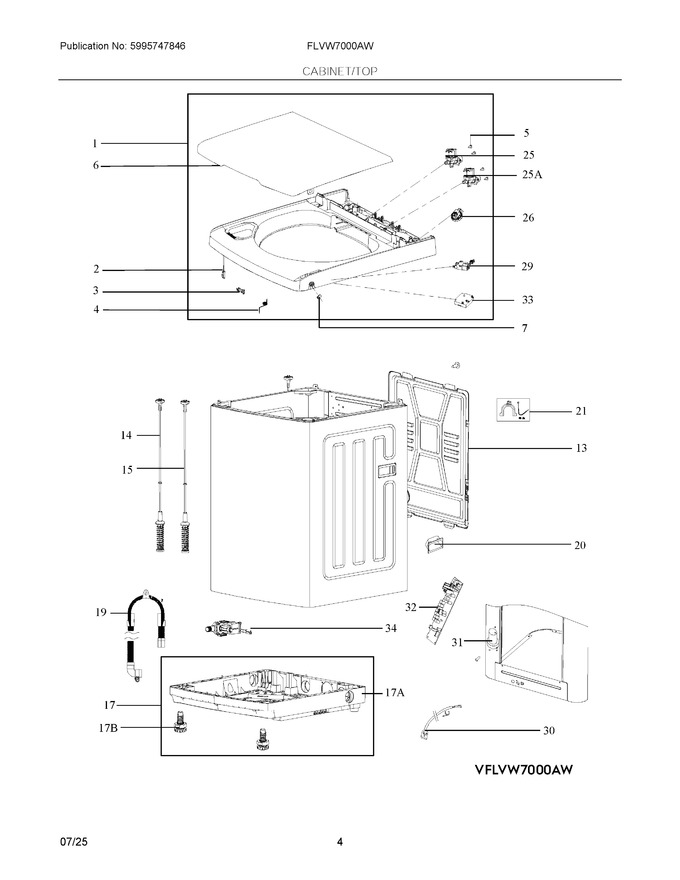

SELECT A DIAGRAM

01 - Cover Sheet


02 - Control Panel


03 - Cabinet/top


04 - Motor/tub


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4056015482		Lid Cover Assembly, Top Door				$ 168.09
2	4056012448		Cover, Magnetic Switch		Appelez-nous	-
3	4056012463		Cover Pin		Appelez-nous	-
4	4056012497		Twist Spring		Appelez-nous	-
5	4056012539		Screw, Includes Bolt				$ 0.70
6	4056012687		Lid Cover, White		Appelez-nous	-
7	5304538541		Screw Cover				$ 0.97
13	4056012638		Rear Cover, Cabinet		Appelez-nous	-
14	4055609657		Rod Suspension, Assembly, Lh				$ 17.17
15	4056012570		Rod Suspension, Assembly, Right				$ 17.61
17	4056012604		Base Assembly, Cabinet		Appelez-nous	-
19	5304538547		Drain Hose, Assembly				$ 30.27
20	4055535159		Handle		Appelez-nous	-
21	4056015789		Accessory Kit, Assembly		Appelez-nous	-
25	4056021308		Water Valve, Inlet, Cold			Immediately	$ 40.55
26	5304538539		Sensor Assembly, Water				$ 24.82
29	5304511338		Lock Assembly, Lid			Immediately	$ 125.88
30	5304511339		Power Cord, Assembly			Immediately	$ 74.47
31	5304538561		Capacitor, Assembly				$ 53.85
32	4056012661		Main Control Board, Pcb				$ 146.97
33	5304538543		Box, Lid Lock				$ 4.32
34	5304538549		Pump, Synchronous			Immediately	$ 167.66
17A	4056012620		Base Cabinet		Appelez-nous	-
17B	4055608998		Foot Assembly, Adjustable		Appelez-nous	-
25A	5304530083		Water Valve, Inlet, Hot			Immediately	$ 50.61

    View Diagram in Separate Window       Print Part List
