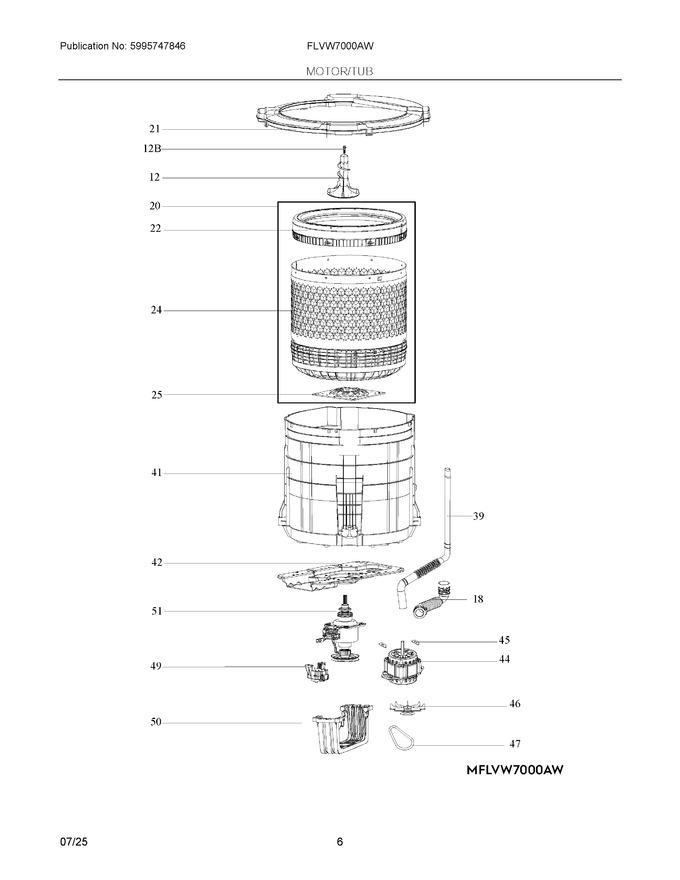

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
12	4056012547		Agitator Assembly				$ 60.44
18	5304538571		Hose, Assembly		Appelez-nous	-
20	4056021290		Tub Complete, Subassembly		Appelez-nous	-
21	4056012505		Cover, Outer Tub				$ 13.80
22	4056012562		Balance Ring, Assembly		Appelez-nous	-
24	4056012588		Tub Assembly, Stainless		Appelez-nous	-
25	5304538562		Plate, Coupling			Immediately	$ 59.24
39	5304538574		Hose, Overflow				$ 3.88
41	4056012612		Tub Assembly, Outer, Subordinate		Appelez-nous	-
42	4056012646		Base Plate, Outer Tub			Immediately	$ 49.52
44	5304538577		Motor, Single Phase				$ 159.21
45	5304538576		Cushion, Motor Mtg, Lower		Appelez-nous	-
46	5304538579		Pulley, Motor			Immediately	$ 16.18
47	5304538535		Belt, Ribbed			Immediately	$ 14.89
49	5304511361		Retractor, Drain Pump				$ 145.50
50	5304538573		Bracket, Clutch Mtg		Appelez-nous	-
51	4056012653		Clutch Body, Assembly			Immediately	$ 163.30
12B	4056012521		Screw Set, Agitator		Appelez-nous	-
