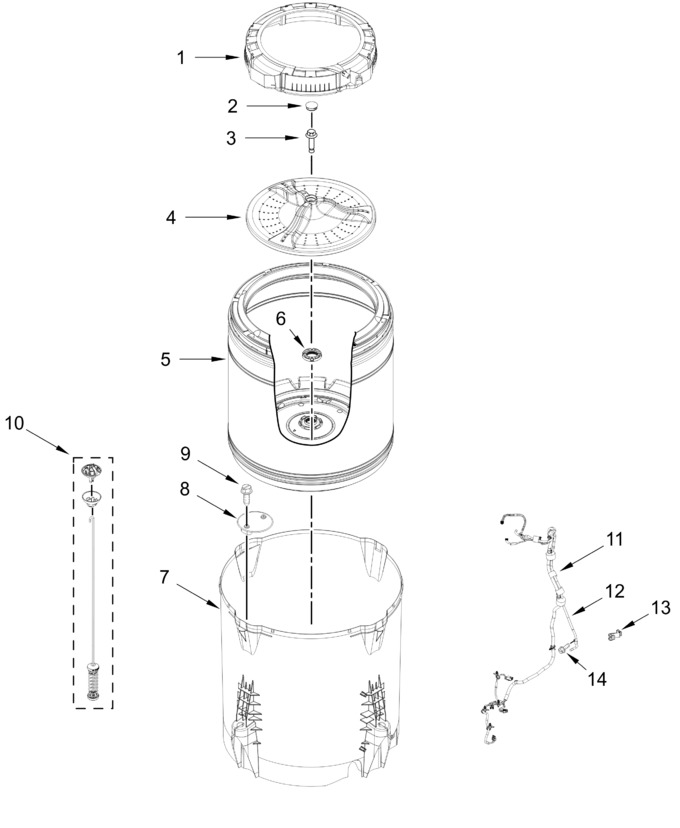

Basket And Tub Parts
Console Parts
Gearcase, Motor And Pump Parts
Optional Parts (not Included)
Top And Cabinet Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11662156 | Tub Ring (Replaces: W11094300) |
|
$ 74.38 | |||||
| 2 | W11050804 | Cap, Impeller (Replaces: W10609549) |
|
Immediately | $ 7.79 | ||||
| 3 | W10752187 | Screw (Replaces: W10625252) |
|
Immediately | $ 8.13 | ||||
| 4 | W10752283 | Impeller (washplate) (Replaces: W10834890) |
|
Immediately | $ 135.09 | ||||
| 5 | W11513243 | Basket Assembly (Replaces: W11459626) |
|
$ 424.22 | |||||
| 6 | W11551646 | Basket, Lock Nut (Replaces: W11183985) |
|
Immediately | $ 14.22 | ||||
| 7 | W11219115 | Tub |
|
$ 368.66 | |||||
| 8 | W11568797 | Drain Pump Filter (Replaces: W11089264) |
|
Immediately | $ 26.79 | ||||
| 9 | WP8533928 | Screw (Replaces: 8533928) |
|
Immediately | $ 7.82 | ||||
| 10 | W11396716 | Damper Assembly, Tub Suspension (set Of 4, Includes Suspension Bushings And Suspension Balls) (Replaces: W11171694) |
|
Immediately | $ 201.30 | ||||
| 11 | W11789812 | Harness, Lower (Replaces: W11757896) |
|
- | |||||
| 12 | WP353244 | Hose, Pressure Switch (Replaces: W10590949) |
|
Immediately | $ 59.93 | ||||
| 13 | W11755726 | Clip, Harness (Replaces: W11284522) |
|
Immediately | $ 7.35 | ||||
| 14 | WPW10109200 | Screw (Replaces: 8533943) |
|
Immediately | $ 8.00 |
