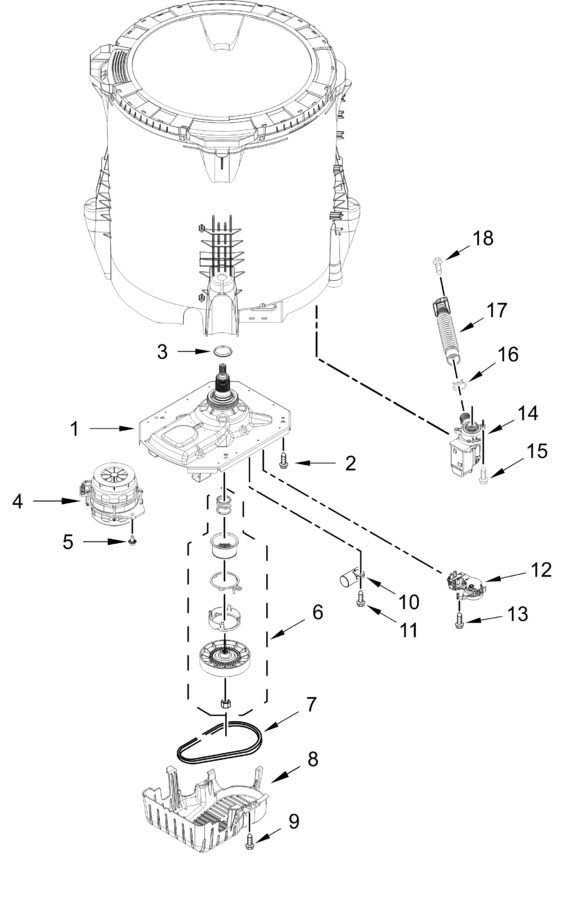

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11449840		Gearcase Assembly   (Replaces: W11164183)			Immediately	$ 302.88
2	WPW10249633		Screw   (Replaces: W10249633)			Immediately	$ 7.19
3	W11553312		Washer, Thrust   (Replaces: W11218170)			Immediately	$ 15.79
4	W11026785		Motor, Drive   (Replaces: W10677723)			Immediately	$ 238.55
5	W11685857		Screw   (Replaces: W10094780)				$ 14.10
6	W10721967		Splutch Kit (60hz)			Immediately	$ 55.68
7	WPW10006384		Belt, Drive   (Replaces: W10006384)			Immediately	$ 38.66
8	W11778479		Cover Pulley Shield   (Replaces: W11696628)				$ 64.92
9	WP273556		Screw   (Replaces: 357640)			Immediately	$ 7.82
10	W11395618		Capacitor, Motor Run   (Replaces: W11162560)			Immediately	$ 108.62
11	WP489128		Screw   (Replaces: W10142728)				$ 10.88
12	W11481722		Actuator, Shift   (Replaces: W11398781)			Immediately	$ 157.63
13	W11596033		Screw   (Replaces: 9741052)				$ 13.55
14	W11399437		Drain Pump Assembly   (Replaces: W11259498)			Immediately	$ 207.92
15	WPW10004910		Screw   (Replaces: W10004910)				$ 7.95
16	WP285655		Clamp, Hose   (Replaces: 8317496)			Immediately	$ 8.39
17	W11735315		Inner Drain Hose Assembly   (Replaces: W11687191)				$ 47.70
18	WP9740848		Screw   (Replaces: 9740848)			Immediately	$ 7.86

    View Diagram in Separate Window       Print Part List
