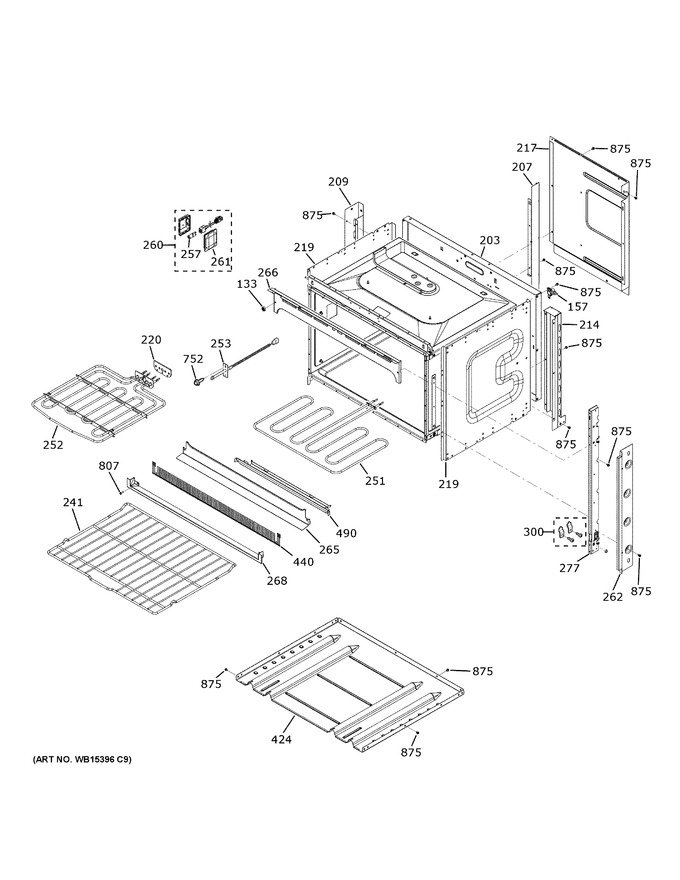

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
133	WB03T10341		Bumper Door		Appelez-nous	-
157	WB24X46906		High Limit Switch		Appelez-nous	-
203	WB63X32829		Rear Insulation Retainer		Appelez-nous	-
207	WB34T10134		Divider Air Bottom		Appelez-nous	-
209	WB34X35265		Channel Rear		Appelez-nous	-
214	WB34X21912		Channel Rear Rt		Appelez-nous	-
217	WB34T10136		Cover - Upper Rear Duct		Appelez-nous	-
219	WB34X21913		Retainer Insln Sde		Appelez-nous	-
220	WB35X21972		Gasket Broil Element		Appelez-nous	-
241	WB48X31582		Oven Rack		Appelez-nous	-
251	WB44X48678		Hidden Bake Element		Appelez-nous	-
252	WB44X48679		Broil Element		Appelez-nous	-
253	WB21X10165		Sensor Asm		Appelez-nous	-
257	WB25T10102		Lamp Halogen Bulb G9		Appelez-nous	-
260	WB25X31221		Top Halogen Lamp Asm		Appelez-nous	-
261	WB34X31317		Oven Light Lens		Appelez-nous	-
262	WB07T10732		Trim Vert Side (bk)		Appelez-nous	-
265	WB07X21187		Trim Vent Lwr		Appelez-nous	-
266	WB07X21942		Trim Vent Upr		Appelez-nous	-
268	WB07X32832		Bottom Trim		Appelez-nous	-
277	WB07T10754		Brace Vertical Right Blk		Appelez-nous	-
277	WB07X35692		Brace Vertical Left		Appelez-nous	-
300	WG02A01591		Hinge Bracket Asm Kit   (Replaces: WB49X21652)				$ 126.62
424	WB56X43352		Cover Bottom Air Duct		Appelez-nous	-
440	WB34X43346		Screen Support		Appelez-nous	-
490	WB55T10197		Cover Hidden Bake		Appelez-nous	-
752	WB01X21742		Screw		Appelez-nous	-
807	WG02A00783		Trim Screw-blk   (Replaces: WB1K5173)				$ 3.57
875	WG04A00781		Screw 8-18 Ab Hxw 3/8   (Replaces: WH2X930)			Immediately	$ 3.57

    View Diagram in Separate Window       Print Part List
