Diagram # Part Number Description Series Availability Ships Price Add to Cart
101 WB35X21737 Insulation Dr Top Appelez-nous -
102 WB35X31513 Door Side Insulation Appelez-nous -
112 WB63X32569 Oven Door Liner Asm Appelez-nous -
113 WB34X31516 Door Insulation Retainer Appelez-nous -
120 WB34X46746 Liner Support Appelez-nous -
132 WB35X32825 Oven Door Gasket Special Order $ 44.83

136 WB15X49367 Stainless Handle Appelez-nous -
140 WB56X45606 Outer Door-stainless Appelez-nous -
144 WB02X36005 Support Handle Appelez-nous -
145 WB34T10142 Deflector Oven Door Appelez-nous -
281 WB10X30580 Door Hinge Lt Appelez-nous -
281 WB10X30579 Door Hinge Rt Appelez-nous -
338 WG02L08666 Window Pack Asm   (Replaces: WB56X27480) In-Stock Immediately $ 638.33

699 WB1K5150 Screw St10-16 X 7/16" Appelez-nous -
875 WG04A00781 Screw 8-18 Ab Hxw 3/8   (Replaces: WH2X930) In-Stock Immediately $ 3.57

927 WB02X32440 Washer Contoured Appelez-nous -
937 WB01T10132 Screw 10-32 Hex 1 3/4 In Appelez-nous -
982 WB01X34649 Screw 10-18 Pl Trt20 3/4 S Appelez-nous -
1005 WS01A01018 Screw 10-32 Tr T   (Replaces: WB01T10008) In-Stock Immediately $ 3.57


    View Diagram in Separate Window     Print Icon   Print Part List

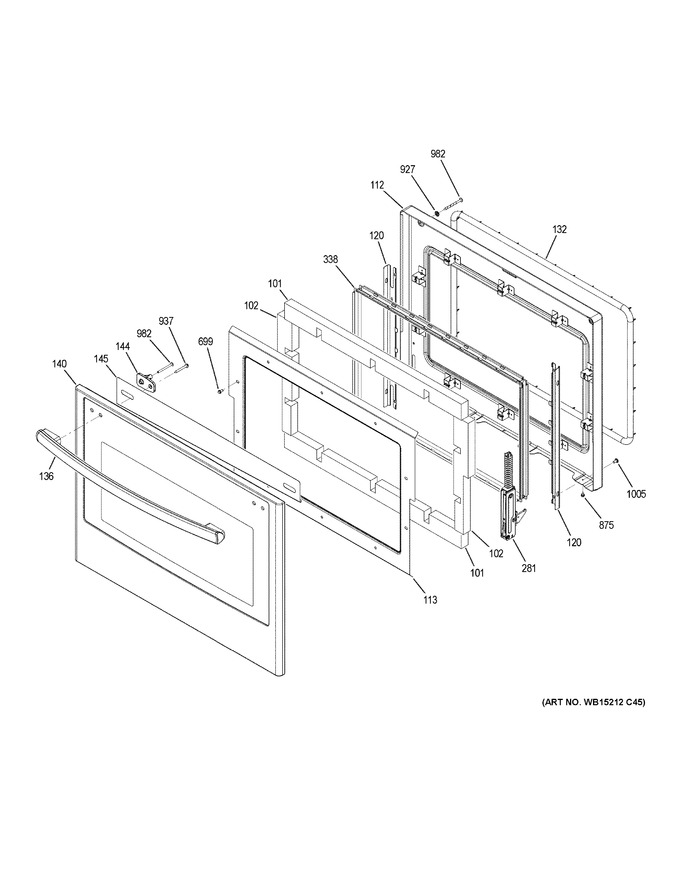

Diagram for JT3800SHASS
